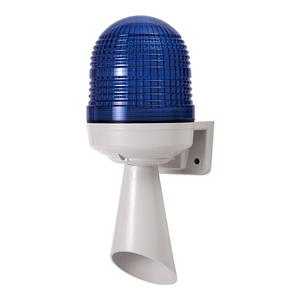

Autonics MW86T-R00-B-S3 - D86mm Wall Mounting Signal Light
Technical Specifications of Autonics D86mm Wall Mounting Signal Light MW86T-R00-B-S3:
| Brand | Autonics |
| Product Type | Electronics Series |
| Product | MW86T-R00-B-S3 |
Autonics D86mm Wall Mounting Signal Light MW86T-R00-B-S3 Technical Specifications
| Specification | Value |
|---|---|
| Function | Steady, Flashing, Rotating, Multi sound |
| Power supply | 12~24VDC |
| Current consumption | 0.25A |
| LED color | Blue |
| Lens color | Blue |
| Dimension | D86mm |
| Flashing rate | General: 80±10times/minute, Emergency flashing: 240±10times/minute |
| Sound type | Fire car, Police car, Ambulance |
| Sound volume | General type: 55~85±5dB (at 1m) Horn type: 55~90±5dB (at 1m) |
| Mounting direction | Wall mount (upright only) |
| Connection type | Lead wire connection |
| Cable specification | UL1007/22AWG, Sound wire: 2464UL/22AWG |
| Ambient temperature | -20~40℃ |
| Storage ambient temperature | -20~70℃ |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | General type: IP43, Horn type: IP54 |
| Weight | General type: Approx. 279g, Horn type: Approx. 306g |
