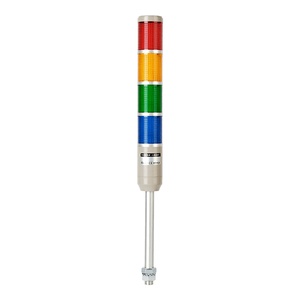

Autonics MT5C-5ALG-RYGBC Tower Light

The Autonics MT5C-5ALG-RYGBC Tower Light offers Steady, Flashingfunction, 24VAC/DC power supply, Red, Yellow, Green, Blue, Clear lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Tower Light category, this model belongs to the Autonics MT5C Series.

Brand	Autonics
Product Type	Tower Lights
Model Number	MT5C-5ALG-RYGBC

Autonics MT5C-5ALG-RYGBC Tower Light – Technical Specifications

Specification	Value
Function	Steady, Flashing
Power supply	24VAC/DC
Current consumption	2.0A
Lens color	Red, Yellow, Green, Blue, Clear
Dimension	D56mm
Flashing rate	80±10times/minute
Connection type	Lead wire connection
Cable specification	UL3266/22AWG
Ambient temperature	-15~40℃
Storage ambient temperature	-20~70℃
Ambient humidity	45 to 85%RH
Insulation resistance	100MΩ or more (500VDC megger basis)
Vibration	0.75mm at 10~55Hz
Protection structure	IP54
Bulb specification	24V 10W
