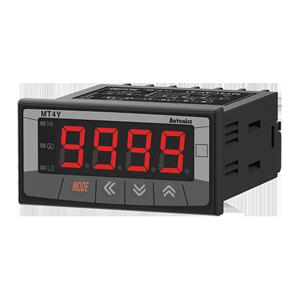

Autonics MT4Y-DV-44 Digital Panel Meters with Diverse I/O
The MT4Y-DV-44 Autonics Digital Panel Meters with Diverse I/O measures DC voltage using 4-digit LED display panels reliably installed. Manufactured by Autonics, this digital panel meter belongs to Autonics Digital Panel Meters and the MT4W Series, supporting a -1999 to 9999 display range, 100β240VAC power supply, relay LO output, and IP56 front protection.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | MT4Y-DV-44 |
Autonics MT4Y-DV-44 Digital Panel Meters with Diverse I/O β Technical Specifications
| Specification | Value |
|---|---|
| Display method | 4-digit 7-segment LED |
| Character height | 14.2mm |
| Max. display Range | -1999 to 9999 |
| Measurement | DC voltage |
| Input specification | 0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV |
| Power supply | 100-240VAC~ 50/60Hz |
| Output_Main Output(Comparative Value) | Relay (LO) |
| Output_Sub Output(Display Value) | RS485 communication |
| Display accuracy | Γ’β¬Β’ 23Γ’βΖΓΒ±5Γ’βΖ - ΓΒ± 0.1 % F.S. rdg ΓΒ± 2 digitΓΒ± 0.3 % F.S. rdg ΓΒ± 3 digit max. only for 5A terminal.Γ’β¬Β’ -10Γ’βΖ to 50Γ’βΖ -ΓΒ± 0.5 % F.S. rdg ΓΒ± 3 digit |
| A/D conversion method | ΓΒ£Γβ (Sigma Delta) ADC |
| Sampling cycle | 50ms |
| Hold function | Includes (external hold function) |
| Environment_Ambient temperature | -10 to 50Γ’βΖ, storage: -20 to 60Γ’βΖ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Protection structure | IP56 (front part, IEC standard) |
| Unit weight (packaged weight) | Γ’β°Λ 134 g (Γ’β°Λ 213.5 g) |
The Autonics MT4Y-DV-44 Digital Panel Meters with Diverse I/O is designed for DC voltage monitoring in industrial automation systems. It features a 4-digit 7-segment LED display with a -1999 to 9999 measurement range and operates on a 100β240VAC power supply. This model is part of the MT4W Series and provides a relay LO output for defined threshold signaling in control panels.
In industrial automation environments, the MT4Y-DV-44 Autonics Digital Panel Meters with Diverse I/O is applied in conveyors, packaging machines, automated production lines, and assembly panels. It enables operators to monitor DC voltage levels clearly while supporting stable relay-based signaling for control and alarm conditions. The IP56-rated front structure supports consistent panel mounting under routine industrial exposure.
The Autonics MT4Y-DV-44 digital panel meter delivers dependable electrical indication aligned with industrial panel requirements. With defined DC voltage measurement, standard AC power input, and protected front construction, it supports reliable automation performance. Positioned within the MT4W Series and supported by Autonics manufacturing standards, this model is suitable for industrial applications across India requiring consistent monitoring and control reliability.
