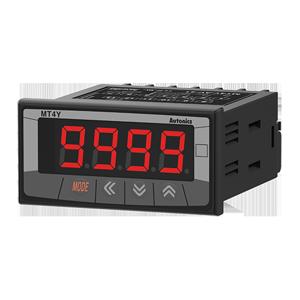

Autonics MT4Y-DA-4N Digital Panel Meter
The Autonics MT4Y-DA-4N Digital Panel Meter offers 4-digit 7-segment LED display method, 14.2mm character height, -1999 to 9999 display range, DC current measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics MT4Y Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | MT4Y-DA-4N |
Autonics MT4Y-DA-4N Digital Panel Meter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | 4-digit 7-segment LED |
| Character height | 14.2mm |
| Max. display Range | -1999 to 9999 |
| Measurement | DC current |
| Input specification | 0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA |
| Power supply | 100-240VAC~ 50/60Hz |
| Output_Main Output(Comparative Value) | Indicator |
| Display accuracy | • 23℃±5℃ - ± 0.1 % F.S. rdg ± 2 digit± 0.3 % F.S. rdg ± 3 digit max. only for 5A terminal.• -10℃ to 50℃ -± 0.5 % F.S. rdg ± 3 digit |
| A/D conversion method | ΣΔ (Sigma Delta) ADC |
| Sampling cycle | 50ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Protection structure | IP56 (front part, IEC standard) |
| Unit weight (packaged weight) | ≈ 134 g (≈ 213.5 g) |
Autonics MT4Y-DA-4N offers exceptional technical precision with its 4-digit 7-segment LED display and 14.2mm character height, enabling clear visibility in industrial environments. It measures DC current across input ranges like 0–5A, 4–20mA, 0–500mA, and more. Operating on 100–240VAC~ 50/60Hz, it uses ΣΔ (Sigma-Delta) ADC for accurate sampling at 50ms intervals. With a robust IP56 front structure and double insulation for electrical safety, this panel meter is ideal for demanding field conditions. The display accuracy is maintained at ±0.1% F.S. ±2 digits at standard temperature, ensuring consistent reliability across various applications.
The model is equipped with an indicator output for comparative readings, offering visual feedback without external controllers. Its advanced insulation structure, high dielectric strength (1kV), and humidity tolerance (35–85% RH) make it well-suited for humid and high-temperature factory environments. The compact build and efficient mounting allow seamless integration into control panels and machine dashboards. Maintenance teams trust it for rapid diagnosis, while OEMs rely on its long-term stability and compatibility with multiple current signal ranges.
Autonics MT4Y-DA-4N Digital Panel Meter is widely used in machine control panels, automation lines, testing rigs, battery charging systems, and power monitoring setups. Its reliability in low-current signal reading makes it a preferred choice for monitoring sensor outputs and PLC feedback in industrial processes. Ideal for both senior engineers handling system upgrades and junior technicians learning calibration, it simplifies troubleshooting and ensures process accuracy. For businesses looking to ensure efficiency, consistency, and safety, this model delivers a dependable, accurate, and durable monitoring solution.
