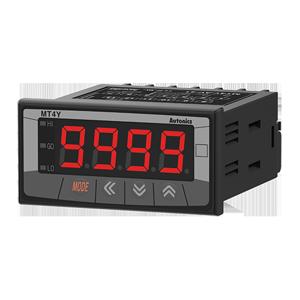

Autonics MT4Y-AA-43 Digital Panel Meter
The Autonics MT4Y-AA-43 Digital Panel Meter offers 4-digit 7-segment LED display method, 14.2mm character height, -1999 to 9999 display range, AC current, Frequency measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics MT4Y Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | MT4Y-AA-43 |
Autonics MT4Y-AA-43 Digital Panel Meter β Technical Specifications
| Specification | Value |
|---|---|
| Display method | 4-digit 7-segment LED |
| Character height | 14.2mm |
| Max. display Range | -1999 to 9999 |
| Measurement | AC current, Frequency |
| Input specification | 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA |
| AC Measurement | Average value (AVG), Root mean square value (RMS) |
| Power supply | 100-240VAC~ 50/60Hz |
| Output_Main Output(Comparative Value) | Relay (LO) |
| Output_Sub Output(Display Value) | PV transmission(DC4-20mA) |
| Display accuracy | Γ’β¬Β’ 23Γ’βΖΓΒ±5Γ’βΖ - ΓΒ± 0.3 % F.S. rdg ΓΒ± 3 digit (frequency: ΓΒ± 0.1 % F.S. rdg ΓΒ± 2-digit)Γ’β¬Β’ -10Γ’βΖ to 50Γ’βΖ - ΓΒ± 0.5 % F.S. rdg ΓΒ± 3-digit |
| A/D conversion method | ΓΒ£Γβ (Sigma Delta) ADC |
| Sampling cycle | 16.6ms |
| Hold function | Includes (external hold function) |
| Environment_Ambient temperature | -10 to 50Γ’βΖ, storage: -20 to 60Γ’βΖ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Protection structure | IP56 (front part, IEC standard) |
| Unit weight (packaged weight) | Γ’β°Λ 134 g (Γ’β°Λ 213.5 g) |
The Autonics MT4Y-AA-43 is a high-precision digital panel meter designed to display AC current and frequency with clarity and accuracy. It features a 4-digit 7-segment LED display with a 14.2mm character height, capable of handling a wide range of input currents including 0β5A, 0β2.5A, 0β1A, and even low currents like 0β50mA. The device supports both AVG (Average) and RMS (Root Mean Square) measurement modes, enabling precise readings regardless of signal type. It operates on a standard 100β240VAC 50/60Hz power supply and uses a ΣΠ(Sigma-Delta) ADC for stable 16.6ms sampling. The main output relay (LO) is ideal for triggering alarms or control functions based on low threshold values, while the sub output provides real-time PV transmission (DC 4β20mA) to external systems, ensuring seamless integration with PLCs and monitoring devices.
Engineered for durability, the MT4Y-AA-43 includes IP56 front panel protection and is rated for -10Β°C to 50Β°C ambient temperatures with humidity resistance up to 85% RH. Its double insulation and 1kV dielectric strength between measurement and power circuits ensure operational safety in electrically demanding environments. The display accuracy is maintained at Β±0.3% F.S. Β±3 digits under normal temperatures and remains reliable even in challenging industrial settings. The built-in external hold function allows readings to be frozen during inspections or calibration. Compact in size with a packaged weight of approximately 213.5g, this meter is designed to fit modern industrial control panels without compromising space or functionality.
The Autonics MT4Y-AA-43 is widely used in control panels for motor monitoring, load analysis, machine diagnostics, and energy audits. Industrial maintenance engineers trust this model to detect fluctuations in equipment current, helping them prevent overloads and reduce downtime. Its real-time PV transmission feature makes it suitable for integration with SCADA or PLC-based automation systems in industries like manufacturing, utilities, and process control. Students and junior engineers also use this model in lab settings to understand real-time current behavior and analog signal conversion. Whether you're managing a production line or teaching the next generation of engineers, the MT4Y-AA-43 offers both the precision and practical features needed to meet demanding application needs. View the official Autonics MT4Y-AA-43 product page for detailed documentation and datasheets.
