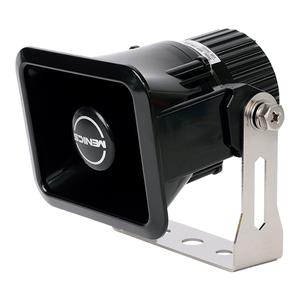

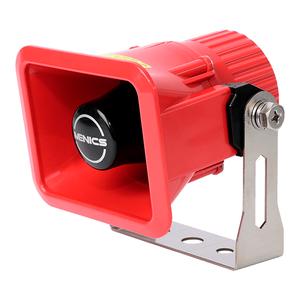

Autonics MSP-TBM-02 - Miniature Horn Speaker
Technical Specifications of Autonics Miniature Horn Speaker MSP-TBM-02:
| Function | Horn speaker electronic sounder |
| Power supply | 24VDC |
| Dimension | 110mm x 88mm x 115mm |
| Connection type | Terminal block method |
Autonics Miniature Horn Speaker MSP-TBM-02 Technical Specifications
| Specification | Value |
|---|---|
| Function | Horn speaker electronic sounder |
| Power supply | 24VDC |
| Current consumption | 0.12A |
| Dimension | 110mm x 88mm x 115mm |
| Sound type | For elise, Sweet home, Cuckoo waltz |
| Sound volume | 100±5dB (at 1m) |
| Connection type | Terminal block method |
| Mounting type | Bracket mount type |
| Dielectric strength | 500VAC~ 50/60Hz |
| Ambient temperature | -20~50℃ |
| Storage ambient temperature | -20~70℃ |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP65 |
| Weight | approx. 436g (MSP-TP Type) |
