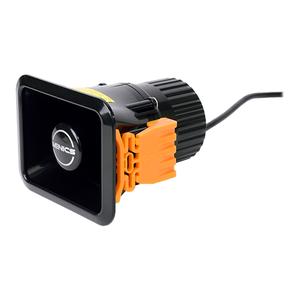

Autonics MSP-LPS-01 - Lead Wire Type Speaker
Technical Specifications of Autonics Lead Wire Type Speaker MSP-LPS-01:
| Function | Horn speaker electronic sounder |
| Power supply | 12VDC |
| Dimension | 110mm x 88mm x 135mm |
| Connection type | Lead wire connection |
Autonics Lead Wire Type Speaker MSP-LPS-01 Technical Specifications
| Specification | Value |
|---|---|
| Function | Horn speaker electronic sounder |
| Power supply | 12VDC |
| Current consumption | 0.8A |
| Dimension | 110mm x 88mm x 135mm |
| Sound type | Fire car, Police car, Ambulance |
| Sound volume | 110Β±5dB (at 1m) |
| Connection type | Lead wire connection |
| Cable specification | 2464UL/22AWG |
| Mounting type | Panel type |
| Dielectric strength | 500VAC~ 50/60Hz |
| Ambient temperature | -20~50β |
| Storage ambient temperature | -20~70β |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100M⦠or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP65 |
| Weight | approx. 588g (MSP-LB Type) |
