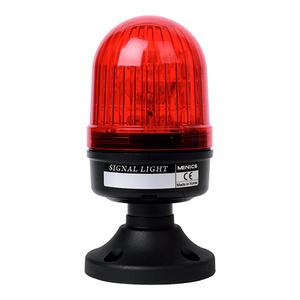

Autonics MS66G-T00-R Signal Light
The Autonics MS66G-T00-R Signal Light offers Rotating+Buzzerfunction, 12~24VAC/DC power supply, Red lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Signal Lights category, this model belongs to the Autonics MS Series.
| Brand | Autonics |
| Product Type | Signal Lights |
| Product | MS66G-T00-R |
Autonics MS66G-T00-R Signal Light – Technical Specifications
| Specification | Value |
|---|---|
| Function | Rotating+Buzzer |
| Power supply | 12~24VAC/DC |
| Current consumption | 0.22A |
| LED color | Red |
| Lens color | Red |
| Dimension | D68mm |
| Rotating rate | 60~300±10rpm |
| Connection type | Lead wire connection |
| Cable specification | UL1007/22AWG |
| Storage ambient temperature | -20~70℃ |
| Ambient temperature | -20~40℃ |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP52 |
| Weight | Approx. 180g |
