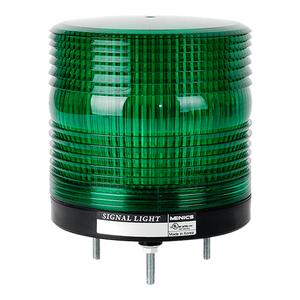

Autonics MS115S-S00-G Signal Light
The Autonics MS115S-S00-G Signal Light offers Flashingfunction, 12~24VAC/DC power supply, Green lens color, Lead wire connection type. Manufactured by Autonics under the Autonics Signal Lights category, this model belongs to the Autonics MS Series.
| Brand | Autonics |
| Product Type | Signal Lights |
| Product | MS115S-S00-G |
Autonics MS115S-S00-G Signal Light β Technical Specifications
| Specification | Value |
|---|---|
| Function | Flashing |
| Power supply | 12~24VAC/DC |
| Current consumption | 0.15A |
| Lens color | Green |
| Dimension | D115mm |
| Mounting direction | Body direct mounting |
| Light source | Xenon lamp 3W |
| Flashing rate | 60Β±10times/minute |
| Connection type | Lead wire connection |
| Cable specification | UL2464/22AWGΓ2C |
| Storage ambient temperature | -20~70β |
| Ambient temperature | -20~40β |
| Ambient humidity | 45 to 85%RH |
| Insulation resistance | 100M⦠or more (500VDC megger basis) |
| Vibration | 0.75mm at 10~55Hz |
| Protection structure | IP65 |
| Weight | approx. 315g |
