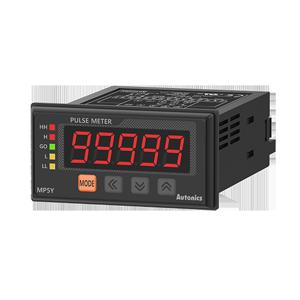

Autonics MP5Y-2N Digital Panel Meter
The Autonics MP5Y-2N Digital Panel Meter offers 5-digit 7-segment LED display method, 14mm character height, -19999 to 99999 display range, 16 operation modes: Frequency, Revolutions, Speed, Cycle, Time, Ratio, Density, Error, Length measurement, Interval, Accumulation, Addition/Subtraction, etc. measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics MP5Y Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | MP5Y-2N |
Autonics MP5Y-2N Digital Panel Meter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | 5-digit 7-segment LED |
| Character height | 14mm |
| Max. display Range | -19999 to 99999 |
| Measurement | 16 operation modes: Frequency, Revolutions, Speed, Cycle, Time, Ratio, Density, Error, Length measurement, Interval, Accumulation, Addition/Subtraction, etc. |
| Power supply | 24VAC~ 50/60Hz, 24-48VDC |
| Output_Main Output(Comparative Value) | Indicator |
| Measurement range | ·Operation mode F1, F2, F7, F8, F9, F10 : 0.0005Hz to 50kHz·Operation mode F3, F4, F5, F6 : 0.01 to max. of each time range·Operation mode F11, F12, F13, F16 : 0 to 99999·Operation mode F14, F15 : -19999 to 99999 |
| Input method | Voltage input(PNP), No-voltage input(NPN) |
| External Power Supply | Max. 12VDC @(=) ±10% 80mA |
| Input frequency | ·Solid state input 1: max. 50kHz (pulse width: min. 10㎲)·Solid state input 2: max. 5kHz (pulse width: min. 100㎲)※For F7, F8, F9, F10 operation mode, max. 1kHz (pulse width: min. 500㎲)·Contact input: max. 45Hz (pulse width: min. 11ms) |
| Measurement accuracy | ·Operation mode F1, F2, F7, F8, F9, F10 : F.S.±0.05%rdg±1-digit·Operation mode F3, F4, F5, F6 : F.S.±0.01%rdg±1-digit |
| Prescale function | Direct input method (0.0001×10@(^-9) to 9.9999×10@(^9)) |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP54 (front part, IEC standard) |
| Weight | Approx. 230g (approx. 140g) |
Give Us a Call for Autonics High Performance Digital Pulse Meters MP5Y-2N with budget-friendly prices. Technical Attributes are MP5Y-2N include an 5-digit 7-segment LED with 14mm character height, these displays support a maximum range of -19999 to 99999. Designed for 16 operation modes: Frequency, Revolutions, Speed, Cycle, Time, Ratio, Density, Error, Length measurement, Interval, Accumulation, Addition/Subtraction, etc. measurement, Power supply 24VAC~ 50/60Hz, 24-48VDC inputs. The Input method Voltage input(PNP), No-voltage input(NPN) Power supply(Option). External Power Supply Max. 12VDC @(=) ±10% 80mA and -10 to 50℃, storage: -20 to 60℃Environment_Ambient temperature. The Environment_Ambient humidity is 35 to 85% RH, storage: 35 to 85% RH. The Approx. 230g (approx. 140g) Protection structure IP54 (front part, IEC standard) sampling. Equipped with a Direct input method (0.0001×10@(^-9) to 9.9999×10@(^9)), Prescale function for industrial automation applications. Get a quote today for Autonics Display Units with superior accuracy and performance. Navigate Your Needs with a Quote for your requirement of High Performance Digital Pulse Meters. We excel in offering more cost-effective and supportive solutions than other Competitors.
