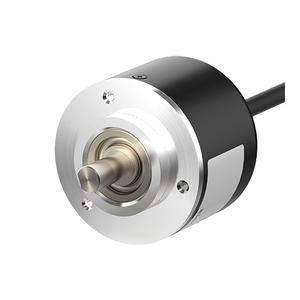

Autonics MGA50S8-48-1R-N-5 Rotary Encoder
The Autonics MGA50S8-48-1R-N-5 Rotary Encoder offers NPN open collector control output, Axial cable type, 30kHz allowable frequency, Γ8mm diameter. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the MGA50S Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | MGA50S8-48-1R-N-5 |
Autonics MGA50S8-48-1R-N-5 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ8mm |
| Max. response frequency | 30kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 48P/R |
| Control output | NPN open collector |
| Power supply | 5VDC |
| Connection type | Axial cable type |
| Output code | BCD Code |
| Rotating direction | CCW |
| Electrical specification_Output_Positioning error | Β±1-bit(LSB: Least Significant Bit) |
| Electrical specification_Output_Output phase/Output angle | TP1: 6°±60'(1-bit)TP2: 1.5°±60'(1-bit)TS: 7.5°±60'(7-bit)EP: 7.5°±60'(1-bit) |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket, Coupling |
| Weight | Approx. 400g(approx. 270g) |
Talk to Our Engineer for 50mm Magnetic Single-Turn Encoder MGA50S8-48-1R-N-5 with exclusive offers. Core System Specifications of MGA50S8-48-1R-N-5 are maximum response frequency of 30kHz and the maximum allowable revolution speed of 3000rpm, ensuring smooth and reliable operation in demanding applications. It features a NPN open collector control output, providing efficient and accurate signal transmission. Designed to operate with a power supply 5VDC, this encoder ensures stability and precision. The Axial cable type simplifies integration, making it suitable for various industrial systems. Built with an IP50 protection structure, it offers reliable resistance against dust for enhanced durability. The encoder is engineered to operate within an ambient temperature range of -10 to 70β, storage: -25 to 85β. It supports humidity levels of 35 to 85% RH, storage: 35 to 90% RH in storage. Don't Miss Out on a Quote for your requirement of 50mm Magnetic Single-Turn Encoder. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
