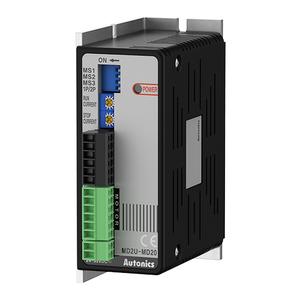

Autonics MD2U-MD20 - 2-Phase Stepper Motor Drivers
The Autonics MD2U-MD20 2-Phase Stepper Motor Driver offers Unipolar constant current driveoperation method, 2-phase stepper motor, 24-35VDC power supply, 2A/Phase current. Manufactured by Autonics under the 2-Phase Stepper Motor Driver category, this model belongs to the Autonics MD2U Series.
| Brand | Autonics |
| Product Type | 2-Phase Stepper Motor Drivers |
| Model Number | MD2U-MD20 |
Autonics 2-Phase Stepper Motor Drivers MD2U-MD20 Technical Specifications
| Specification | Value |
|---|---|
| Operation method | Unipolar constant current drive |
| Applied Motor | 2-phase stepper motor |
| Resolution | FULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20-division) |
| Power supply | 24-35VDC |
| Max. Run Current | 2A/Phase |
| Max. Current Consumption | 3A |
| Number Of Axes | 1-axis |
| Input pulse characteristic_pulse width | Min. 10ใฒ(CW, CCW), Min. 1ms(HOLD OFF) |
| Input pulse characteristic_Duty Rate | 50%(CW, CCW) |
| Input pulse characteristic_Rising/Falling time | Max. 0.5ใฒ(CW, CCW) |
| Input pulse characteristic_Pulse input voltage | [H]: 4-8VDC @(=), [L]: 0-0.5VDC @(=) |
| Input pulse characteristic_pulse input current | 4mA(CW, CCW), 10mA(HOLD OFF) |
| Input pulse characteristic_Max. input pulse freq | Max. 50kHz(CW, CCW) |
| Environment_Ambient temperature | 0 to 50โ, storage: -10 to 60โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 295g(approx. 180g) |
The Autonics MD2U-MD20 2-Phase Stepper Motor Driver operates on a unipolar constant current drive, supporting 2-phase stepper motors for stable and accurate positioning. It provides multiple resolution modes including FULL STEP (1-division), HALF STEP (2-division), and Micro STEP with 4, 5, 8, 10, 16, and 20 divisions, giving engineers flexibility in speed and torque control. The driver is powered by a 24โ35VDC supply, delivering a maximum run current of 2A per phase and peak consumption of 3A, making it suitable for demanding industrial tasks. With an input pulse frequency of up to 50kHz, fast response is ensured even in high-speed applications. The compact design, weighing around 295g, is engineered for reliability under industrial conditions with an ambient operating range of 0โ50โ and humidity tolerance of 35โ85% RH.
The Autonics MD2U-MD20 Stepper Motor Driver is widely used in CNC machines, packaging systems, pick-and-place robotics, printing presses, and conveyor automation. Its micro-step resolution enhances smooth motion, making it ideal for industries that demand precision control in small incremental movements. Maintenance engineers value its durability in tough factory conditions, while design engineers prefer the flexibility in speed-torque tuning. With its robust build, reliable performance, and trusted Autonics automation technology, this driver is a preferred choice across Indian industries, from automotive manufacturing to electronics assembly lines.
