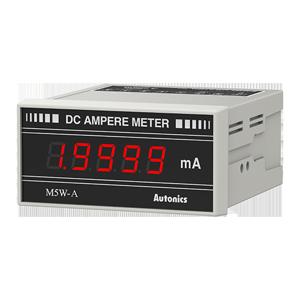

Autonics M5W-DA-2 Digital Panel Meter
The Autonics M5W-DA-2 Digital Panel Meter offers 4ΓΒ½-digit 7-segment LED display method, 14mm character height, 0 to 1.9999 display range, DC current measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics M5M Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | M5W-DA-2 |
Autonics M5W-DA-2 Digital Panel Meter β Technical Specifications
| Specification | Value |
|---|---|
| Display method | 4ΓΒ½-digit 7-segment LED |
| Character height | 14mm |
| Max. display Range | 0 to 1.9999 |
| Measurement | DC current |
| Input specification | 1.9999mA |
| Sampling cycle | 300ms |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Power supply(Option) | 100-240VAC~ 50/60Hz |
| Output | Indicator |
| Display accuracy_DC power | F.S. ΓΒ±0.2% rdg ΓΒ±1-digit |
| Environment_Ambient temperature | 0 to 50Γ’βΖ, storage: -25 to 65Γ’βΖ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 172g |
Obtain a Quote for Autonics Digital Ammeters M5W-DA-2 at economical prices. Specifications Overview for M5W-DA-2 reveals an 4ΓΒ½-digit 7-segment LED with 14mm character height, these displays support a maximum range of 0 to 1.9999. Designed for DC current measurement, they handle 1.9999mA inputs. The system supports AVG and RMS measurement methods and operates on 100-240VAC~ 50/60Hz Power supply(Option). Outputs include Indicator and 0 to 50Γ’βΖ, storage: -25 to 65Γ’βΖEnvironment_Ambient temperature. The Environment_Ambient humidity is 35 to 85% RH, storage: 35 to 85% RH. The Approx. 172g Weight ensures precise 300ms sampling. Equipped with a 150% for each input specification (at 400VAC:120%), Max. allowable input for industrial automation applications. Get a quote today for Autonics Display Units with superior accuracy and performance. Take the First Step with a Quote for your requirement of Digital Ammeters. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
