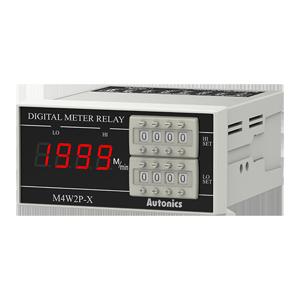

Autonics M4W2P-S-1 Digital Panel Meter
The Autonics M4W2P-S-1 Digital Panel Meter offers 3½-digit 7-segment LED display method, 10mm character height, 0 to 1999 display range, Speed measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics M4W Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | M4W2P-S-1 |
Autonics M4W2P-S-1 Digital Panel Meter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | 3½-digit 7-segment LED |
| Character height | 10mm |
| Max. display Range | 0 to 1999 |
| Measurement | Speed |
| Input specification | 0-10VDC |
| Sampling cycle | 300ms |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Power supply(Option) | 100-240VAC~ 50/60Hz |
| Output | Relay(HI, LOW) |
| Display accuracy_DC power | F.S. ±0.3% rdg ±1-digit |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 278g |
Give Us a Call for Autonics Digital Tachometers M4W2P-S-1 at the lowest pricing. In-depth Technical Analysis of M4W2P-S-1 feature an 3½-digit 7-segment LED with 10mm character height, these displays support a maximum range of 0 to 1999. Designed for Speed measurement, they handle 0-10VDC inputs. The system supports AVG and RMS measurement methods and operates on 100-240VAC~ 50/60Hz Power supply(Option). Outputs include Relay(HI, LOW) and -10 to 50℃, storage: -25 to 65℃Environment_Ambient temperature. The Environment_Ambient humidity is 35 to 85% RH, storage: 35 to 85% RH. The Approx. 278g Weight ensures precise 300ms sampling. Equipped with a 150% for each input specification (at 400VAC:120%), Max. allowable input for industrial automation applications. Get a quote today for Autonics Display Units with superior accuracy and performance. Elevate Your Project with a Quote for your requirement of Digital Tachometers. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
