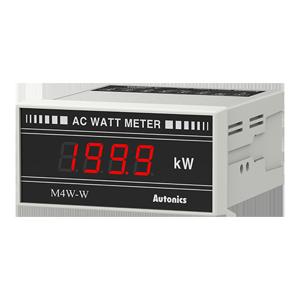

Autonics M4W-W-3 Digital Panel Meter
The Autonics M4W-W-3 Digital Panel Meter offers 3½-digit 7-segment LED display method, 14mm character height, 0 to 19.99 display range, AC electric power measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics M4W Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | M4W-W-3 |
Autonics M4W-W-3 Digital Panel Meter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | 3½-digit 7-segment LED |
| Character height | 14mm |
| Max. display Range | 0 to 19.99 |
| Measurement | AC electric power |
| Input specification | 19.99kW |
| Sampling cycle | 300ms |
| Max. allowable input | 150% for each input specification (at 400VAC:120%) |
| Power supply(Option) | 110/220VAC~ 50/60Hz |
| Output | Indicator |
| Display accuracy_AC power | F.S. ±0.5% rdg ±1-digit |
| Environment_Ambient temperature | -10 to 50℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 168g |
Obtain a Quote for Autonics Digital Wattmeters M4W-W-3 at economical prices. Specifications Overview for M4W-W-3 reveals an 3½-digit 7-segment LED with 14mm character height, these displays support a maximum range of 0 to 19.99. Designed for AC electric power measurement, they handle 19.99kW inputs. The system supports AVG and RMS measurement methods and operates on 110/220VAC~ 50/60Hz Power supply(Option). Outputs include Indicator and -10 to 50℃, storage: -25 to 65℃Environment_Ambient temperature. The Environment_Ambient humidity is 35 to 85% RH, storage: 35 to 85% RH. The Approx. 168g Weight ensures precise 300ms sampling. Equipped with a 150% for each input specification (at 400VAC:120%), Max. allowable input for industrial automation applications. Get a quote today for Autonics Display Units with superior accuracy and performance. Take the First Step with a Quote for your requirement of Digital Wattmeters. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
