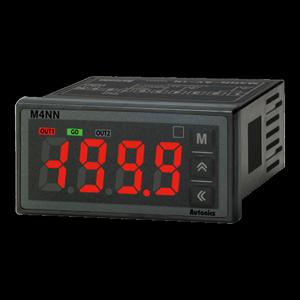

Autonics M4NN-DV-11 Digital Panel Meter
The Autonics M4NN-DV-11 Digital Panel Meter offers 4-digit 7-segment LED display method, 11mm character height, -1999 to 9999 display range, DC voltage measurement. Manufactured by Autonics under the Autonics Digital Panel Meter category, this model belongs to the Autonics M4NN Series.
| Brand | Autonics |
| Product Type | Digital Panel Meter |
| Model Number | M4NN-DV-11 |
Autonics M4NN-DV-11 Digital Panel Meter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | 4-digit 7-segment LED |
| Character height | 11mm |
| Max. display Range | -1999 to 9999 |
| Measurement | DC voltage |
| Input specification | -600-600V, -200-200V, -100-100V, -20-20V, -10-10V, -2-2V, -1-1V, -200-200mV |
| Power supply | 5-24VDC @(=) |
| Output_Main Output(Comparative Value) | NPN open collector (OUT1, GO, OUT2) |
| Display accuracy | •23℃±5℃ - ±0.1% F.S. ±2-digit•-10 to 50℃ - ±0.5% F.S. ±3-digit |
| A/D conversion method | Practical oversampling using successive approximation ADC |
| Sampling cycle | 50ms (resolution 1/12,000) |
| Power Factor Display | Power Factor Display |
| Max. allowable input | -110 to 110% of the rated measurement input range(when not using minus input: -10 to 110%) |
| Display cycle | 0.1 to 5.0 sec (selectable by 0.1 sec) |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV) |
| Protection structure | IP53 (front part, IEC standard) |
| Weight | Approx. 83.6g(approx. 46.8g) |
Talk to Our Engineer for Autonics Compact Digital Panel Meter with Inputs M4NN-DV-11 with exclusive offers. Core System Specifications of M4NN-DV-11 are an 4-digit 7-segment LED with 11mm character height, these displays support a maximum range of -1999 to 9999. Designed for DC voltage measurement, they handle -600-600V, -200-200V, -100-100V, -20-20V, -10-10V, -2-2V, -1-1V, -200-200mV inputs. The system supports AVG and RMS measurement methods and operates on 5-24VDC @(=) power. Outputs include NPN open collector (OUT1, GO, OUT2) and . The display accuracy is •23℃±5℃ - ±0.1% F.S. ±2-digit•-10 to 50℃ - ±0.5% F.S. ±3-digit. The Practical oversampling using successive approximation ADC ensures precise 50ms (resolution 1/12,000) sampling. Equipped with a , it is ideal for industrial automation applications. Get a quote today for Autonics Display Units with superior accuracy and performance. Don't Miss Out on a Quote for your requirement of Compact Digital Panel Meter with Inputs. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
