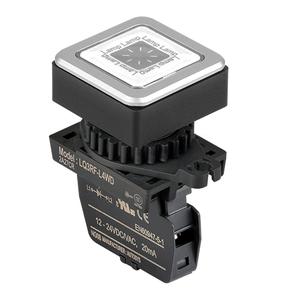

Autonics LQ3RF-L4WL - 30 mm Pilot Lights
Autonics 30 mm Pilot Lights LQ3RF-L4WL Technical Specifications
| Brand | Autonics |
| Product Type | Control Switches |
| Product | LQ3RF-L4WL |
Autonics 30 mm Pilot Lights LQ3RF-L4WL Technical Specifications
| Specification | Value |
|---|---|
| LED block_Power supply | 110-220VAC~ 50/60Hz |
| LED block_Current consumption | Max. 20mA |
| Letter marking | Marking(Lamp) |
| Color | White |
| Head type | Flat square(flush) |
| LED block type | Singular type |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Mounting hole_□30 | Approx. 22g |
| Weight_Housing | Approx. 7g |
| Weight_LED block_AC voltage type | Approx. 12g |
