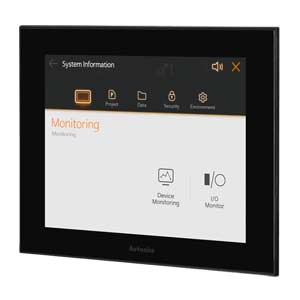

Autonics LP-A104-T9D8-C6T - 10.4-Inch Color LCD Logic Panels
Autonics 10.4-Inch Color LCD Logic Panels LP-A104-T9D8-C6T Technical Specifications
| Brand | Autonics |
| Product Type | HMI |
| Product | LP-A104-T9D8-C6T |
Autonics 10.4-Inch Color LCD Logic Panels LP-A104-T9D8-C6T Technical Specifications
| Specification | Value |
|---|---|
| Display Specifications_LCD Type | TFT Color LCD |
| Display Specifications_Resolution | 800ร600 dot |
| Display Specifications_Display Area | 211.2ร158.4mm |
| Display Specifications_Color | 16,777,216 colors |
| Graphic Drawing Memory | 64MB |
| Touch method | Pressure sensitive type |
| Interface_RS232C | 1 EA |
| Interface_Ethernet | IEEE802.3(U), 10/100Base-TX |
| Power supply | 24VDC @(=) |
| Protection structure | IP65 (Front panel, IEC standards) |
| Dedicated Software | atDesigner, atLogic |
| Interface_USB(Host) | 1 EA |
| Interface_USB(Device) | 1 EA |
| Graphic drawing Perfomance_Language | English, Korean |
| Graphic drawing Perfomance_Text | Bitmap ASCII and vector font |
| Graphic drawing Perfomance_Number of user screen | 100 pages |
| Real-time controller | RTC embedded |
| Accessories | Fixing bracket: 6, CAN connector, battery (included) |
| Environment_Ambient temperature | 0 to 50โ, storage: -20 to 60โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Interface_RS422 | 1 EA |
| Interface_CAN | 24V CAN transceiver |
| External storage | Micro SD up to 32GB (FAT16/32) |
| Weight | Approx. 1.66kg (approx. 1.10kg) |
Get A Quote for Autonics 10.4-Inch Color LCD Logic Panels LP-A104-T9D8-C6T at the best price. Here are the brief Technical Specifications of LP-A104-T9D8-C6T are 64MB graphic drawing memory, they provide clear and responsive visuals for real-time monitoring. The Pressure sensitive type method ensures smooth operation. Equipped with dual RS232C interfaces and Ethernet support IEEE802.3(U), 10/100Base-TX, these HMIs enable efficient communication across networks. Powered by 24VDC @(=), they maintain stable performance in industrial environments. Built with an IP65 (Front panel, IEC standards)-rated front panel, they offer protection against dust and water per IEC standards. The dedicated software atDesigner, atLogic allows intuitive configuration and customization. Additional connectivity options include 1 EA USB Host and 1 EA USB Device interface, ensuring flexible data transfer. Designed for durability, they operate with storage temperatures ranging from 0 to 50โ, storage: -20 to 60โ and humidity tolerance of 35 to 85% RH, storage: 35 to 85% RH. It's Time to get a Quote for your requirement of 10.4-Inch Color LCD Logic Panels. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
