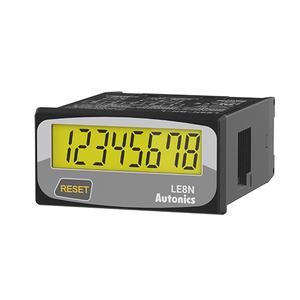

Autonics LE8N-BV-L Timer
The Autonics LE8N-BV-L Timer offers Count up operation method, POWER ON START time operation, Terminal block terminal, Built-in battery(over 10 years) power supply. Manufactured by Autonics under the Autonics Timers category, this model belongs to the Autonics LE8N Series.
| Brand | Autonics |
| Product Type | Timer |
| Model Number | LE8N-BV-L |
Autonics LE8N-BV-L Timer β Technical Specifications
| Specification | Value |
|---|---|
| Display method | 8-digit 7-segment LCD |
| Operation method | Count up |
| Time operation | POWER ON START |
| Terminal | Terminal block |
| Power supply | Built-in battery(over 10 years) |
| Min. signal Width | SIGNAL, RESET input: Approx. 20ms |
| Input Method_Signal | Voltage input(PNP) |
| Input Method_Reset | Voltage input(PNP) |
| Backlight | Backlight function |
| Protection structure | IP66(front panel) |
| External set switch | SW1, SW2, SW3 |
| Setting range | 1 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour |
| Control output | Indicator |
| Accessories | Mounting bracket, Rubber waterproof ring |
| Environment_Ambient temperature | -10 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85%RH |
| Weight | Approx. 96g (approx. 50g) |
Ask for the Pricing of Compact 8-Digit LCD Digital Timers LE8N-BV-L at unbeatable prices. Detailed Specifications of LE8N-BV-L features activating upon power application. The time operation is POWER ON START, ensuring reliable switching. The Count up range spans 1 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour, which is suitable for precision applications. The terminal type is an Terminal block for secure connections. The power supply operates at Built-in battery(over 10 years), ensuring stable performance. The control output is Indicator, optimizing switching functionality. It operates efficiently in an ambient temperature range of -10 to 55β, storage: -25 to 65β. The ambient humidity tolerance is 35 to 85%RH, enhancing longevity in diverse environments. Now's the Time to Secure a Quote for your requirement of Compact 8-Digit LCD Digital Timers. We're committed to offering more favorable pricing and more responsive support than other Traders.
