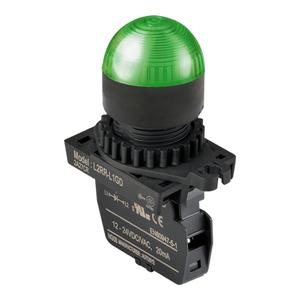

Autonics L2RR-L1GDM - 22/25 mm Pilot Lights
Autonics 22/25 mm Pilot Lights L2RR-L1GDM Technical Specifications
| Brand | Autonics |
| Product Type | Control Switches |
| Product | L2RR-L1GDM |
Autonics 22/25 mm Pilot Lights L2RR-L1GDM Technical Specifications
| Specification | Value |
|---|---|
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC @(=) |
| LED block_Current consumption | Max. 20mA |
| Letter marking | None(no printing) |
| Color | Green |
| Head type | Dome head(extended) |
| LED block type | Modular type |
| Environment_Ambient temperature | -15 to 55โ, storage: -25 to 65โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP52 |
| Weight_Housing | Approx. 7g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Weight_Mounting hole_ร22/25 | Approx. 15.5g |
