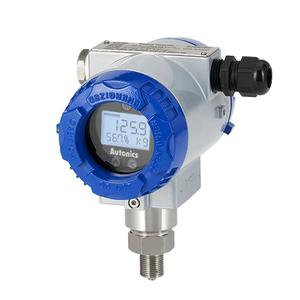

Autonics KT-302HS-0200 Pressure Trasmitter
The Autonics KT-302HS-0200 Pressure Transmitter offers Gauge pressure, 9-45VDC power supply, ±0.2% of F.S. accuracy , 0 to 0.1MPa pressure range , G3/8 (PF, standard) pressure port. Manufactured by Autonics under the Autonics Pressure Transmitter category, this model belongs to the Autonics KT-302H Series.
| Brand | Autonics |
| Product Type | Pressure Transmitter |
| Model Number | KT-302HS-0200 |
Autonics KT-302HS-0200 Pressure Trasmitter – Technical Specifications
| Specification | Value |
|---|---|
| Measurement pressure | Gauge pressure |
| Measured materials | Liquid, gas, oil (except corrosive environment of stainless steel type 316) |
| Power supply | 9-45VDC |
| Accuracy | ±0.2% of F.S. |
| Protection structure | IP67(IEC standard) |
| Display method | PV display part: 7-segment 5-digit, Parameter display part: 16-segment 8-digit, Bar LED: 52 |
| Display range | -9999 to 99999 |
| Output | DC4-20mA (2-wire) Low-limit 3.8mA, high-limit 22.8mA |
| Explosion class | Ex d IIC T6 |
| Mounting bracket | Without bracket |
| Environment_Ambient temperature | -20 to 70 ℃, storage: -40 to 85 ℃ |
| Environment_Ambient humidity | 0 to 85%RH, storage: 0 to 85%RH |
| Material | Body: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316 |
| Pressure range | 0 to 0.1MPa |
| Pressure port | G3/8 (PF, standard) |
| Weight | Approx. 1.7kg (approx. 1.4kg) |
