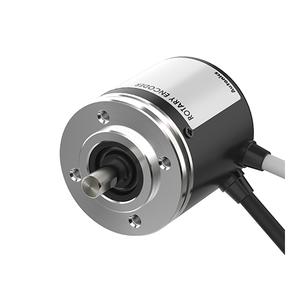

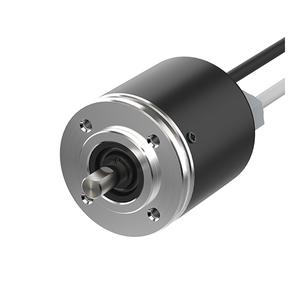

Autonics EPM50S8-1013-B-PN-24 Multi Turn Encoder
The EPM50S8-1013-B-PN-24 is an Autonics Multi Turn Encoder with single-turn 1024-division and multi-turn 8192-revolution resolution for industrial automation use. Manufactured by Autonics, this encoder within the Autonics Encoders range belongs to the EPM50S Series, supporting 3000 rpm maximum allowable revolution, parallel NPN open collector output, 12–24VDC power supply, axial cable connection type, IP64 protection structure, and approximately 560 g weight.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | EPM50S8-1013-B-PN-24 |
Autonics EPM50S8-1013-B-PN-24 Multi Turn Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 50kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 70gf.cm(max. 0.0069N.m) |
| Resolution | Single-Turn: 1024-division, Multi-Turn: 8192-revolution |
| Control output | Parallel NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP64 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket, Coupling |
| Weight | Approx. 560g(approx. 475g) |
The EPM50S8-1013-B-PN-24 Autonics Multi Turn Encoder is designed for precise position feedback in industrial automation systems. This model provides single-turn 1024-division resolution with 8192-revolution multi-turn resolution, operates on 12–24VDC power supply, and supports 3000 rpm allowable revolution through a parallel NPN open collector output. It belongs to the EPM50S Series and is used where multi-rotation position tracking is required.
In industrial applications, the EPM50S8-1013-B-PN-24 Autonics Multi Turn Encoder is used in conveyors, automated assembly lines, packaging machinery, and material handling equipment. Multi-turn capability allows accurate position retention across power cycles without re-homing. The axial cable connection and defined electrical output support stable signal transmission in rotating machinery and control panel installations.
The EPM50S8-1013-B-PN-24 from Autonics offers consistent multi-turn position feedback with clearly defined electrical and mechanical specifications. As part of the EPM50S Series, it aligns with established Autonics encoder standards used in industrial automation environments. This Autonics Multi Turn Encoder is suitable for engineers requiring reliable position tracking, stable output behavior, and compatibility with industrial control systems.
