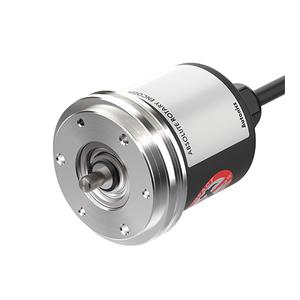

Autonics EP58SS6-45-3F-N-5 Rotary Encoder
The Autonics EP58SS6-45-3F-N-5 Rotary Encoder offers NPN open collector control output, Axial cable type, 35kHz allowable frequency, Ø6mm diameter. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the EP58SS Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | EP58SS6-45-3F-N-5 |
Autonics EP58SS6-45-3F-N-5 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø6mm |
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 45P/R |
| Control output | NPN open collector |
| Power supply | 5VDC |
| Connection type | Axial cable type |
| Output code | Gray Code |
| Rotating direction | CW |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø6mm coupling, Fixing bracket |
| Weight | Approx. 415g |
Ask for the Pricing of Single-Turn Absolute Encoders EP58SS6-45-3F-N-5 at unbeatable prices. Detailed Specifications of EP58SS6-45-3F-N-5 features maximum response frequency of 35kHz and the maximum allowable revolution speed of 3000rpm, ensuring smooth and reliable operation in demanding applications. It features a NPN open collector control output, providing efficient and accurate signal transmission. Designed to operate with a power supply 5VDC, this encoder ensures stability and precision. The Axial cable type simplifies integration, making it suitable for various industrial systems. Built with an IP50 protection structure, it offers reliable resistance against dust for enhanced durability. The encoder is engineered to operate within an ambient temperature range of -10 to 70℃, storage: -25 to 85℃. It supports humidity levels of 35 to 85% RH, storage: 35 to 90% RH in storage. Now's the Time to Secure a Quote for your requirement of Single-Turn Absolute Encoders. We're committed to offering more favorable pricing and more responsive support than other Traders.
