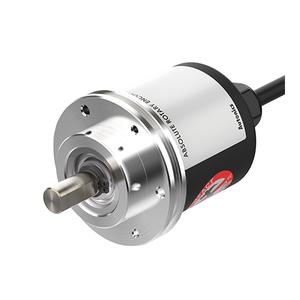

Autonics EP58SC10-128-3R-N-5 Rotary Encoder
The Autonics EP58SC10-128-3R-N-5 Rotary Encoder offers NPN open collector control output, Axial cable type, 35kHz allowable frequency, Ø10mm diameter. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the EP58SC Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | EP58SC10-128-3R-N-5 |
Autonics EP58SC10-128-3R-N-5 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø10mm |
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 128P/R |
| Control output | NPN open collector |
| Power supply | 5VDC |
| Connection type | Axial cable type |
| Output code | Gray Code |
| Rotating direction | CCW |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø10mm coupling, Fixing bracket |
| Weight | Approx. 435g |
Send Your Inquiry for Single-Turn Absolute Encoders EP58SC10-128-3R-N-5 with cost-effective solutions. Essential Technical Specs of EP58SC10-128-3R-N-5 are maximum response frequency of 35kHz and the maximum allowable revolution speed of 3000rpm, ensuring smooth and reliable operation in demanding applications. It features a NPN open collector control output, providing efficient and accurate signal transmission. Designed to operate with a power supply 5VDC, this encoder ensures stability and precision. The Axial cable type simplifies integration, making it suitable for various industrial systems. Built with an IP50 protection structure, it offers reliable resistance against dust for enhanced durability. The encoder is engineered to operate within an ambient temperature range of -10 to 70℃, storage: -25 to 85℃. It supports humidity levels of 35 to 85% RH, storage: 35 to 90% RH in storage. Capture the Best Deal with a Quote for your requirement of Single-Turn Absolute Encoders. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
