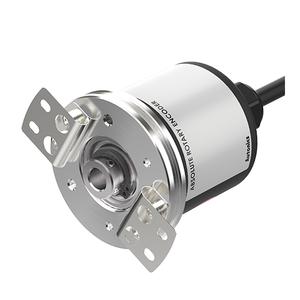

Autonics EP58HB8-180-3F-N-24 Rotary Encoder
The Autonics EP58HB8-180-3F-N-24 Rotary Encoder offers NPN open collector control output, Axial cable type, 35kHz allowable frequency, diameter. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the EP58HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | EP58HB8-180-3F-N-24 |
Autonics EP58HB8-180-3F-N-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø8mm |
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolution | 180P/R |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Output code | Gray Code |
| Rotating direction | CW |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Fixing bracket |
| Weight | Approx. 410g |
Please speak to our Technical Engineer for Single-Turn Absolute Encoders EP58HB8-180-3F-N-24 at attractive prices. Technical Specs Summary of EP58HB8-180-3F-N-24 includes maximum response frequency of 35kHz and the maximum allowable revolution speed of 3000rpm, ensuring smooth and reliable operation in demanding applications. It features a NPN open collector control output, providing efficient and accurate signal transmission. Designed to operate with a power supply 12-24VDC, this encoder ensures stability and precision. The Axial cable type simplifies integration, making it suitable for various industrial systems. Built with an IP50 protection structure, it offers reliable resistance against dust for enhanced durability. The encoder is engineered to operate within an ambient temperature range of -10 to 70℃, storage: -25 to 85℃. It supports humidity levels of 35 to 85% RH, storage: 35 to 90% RH in storage. Match Your Needs with a Quote for your requirement of Single-Turn Absolute Encoders. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
