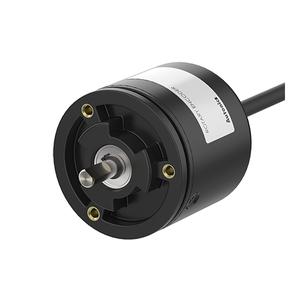

Autonics EP50S8P-180-3R-N-24 Rotary Encoder
The Autonics EP50S8P-180-3R-N-24 Rotary Encoder offers NPN open collector control output, Axial cable type, 20kHz allowable frequency, Ø8mm diameter. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the EP50SP Series
.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | EP50S8P-180-3R-N-24 |
Autonics EP50S8P-180-3R-N-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 20kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 180P/R |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Output code | Gray Code |
| Rotating direction | CCW |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Fixing bracket, Coupling |
| Weight | Approx. 308g(approx. 280g) |
Mail Us for your needs in Single-Turn Absolute Encoder EP50S8P-180-3R-N-24 with budget-friendly prices. The Main Technical Parameters of EP50S8P-180-3R-N-24 include maximum response frequency of 20kHz and the maximum allowable revolution speed of 3000rpm, ensuring smooth and reliable operation in demanding applications. It features a NPN open collector control output, providing efficient and accurate signal transmission. Designed to operate with a power supply 12-24VDC, this encoder ensures stability and precision. The Axial cable type simplifies integration, making it suitable for various industrial systems. Built with an IP50 protection structure, it offers reliable resistance against dust for enhanced durability. The encoder is engineered to operate within an ambient temperature range of -10 to 55℃, storage: -25 to 85℃. It supports humidity levels of 35 to 85% RH, storage: 35 to 90% RH in storage. Customize Your Experience with a Quote for your requirement of Single-Turn Absolute Encoder. Experience the difference with our competitive pricing and superior support over other Suppliers.
