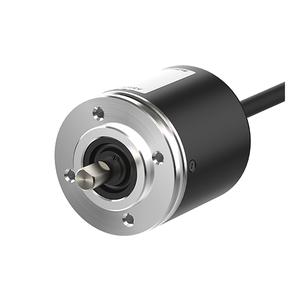

Autonics EP50S8-360-1F-N-24 Absolute Encoder
The EP50S8-360-1F-N-24 is an Autonics Absolute Encoder providing 360P/R resolution, 12–24VDC supply, and IP65 protection for industrial automation. Manufactured by Autonics, this encoder under the Autonics Encoders range belongs to the EP50SP Series, supporting 3000 rpm maximum allowable revolution, NPN open collector output, axial cable connection type, and IP65 protection structure with approximately 482 g weight.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | EP50S8-360-1F-N-24 |
Autonics EP50S8-360-1F-N-24 Absolute Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 70gf.cm(max. 0.0069N.m) |
| Resolution | 360P/R |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP65(IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket, Coupling |
| Weight | Approx. 482g(approx. 398g) |
The EP50S8-360-1F-N-24 Autonics Absolute Encoder is a rotary position feedback device used in industrial automation systems requiring fixed absolute positioning. This model delivers 360P/R resolution, operates on 12–24VDC power supply, and supports 3000 rpm allowable revolution with an NPN open collector control output. It belongs to the EP50SP Series and is applied where position data must be retained after power interruptions.
In industrial applications, the EP50S8-360-1F-N-24 Autonics Absolute Encoder is used in conveyors, packaging machinery, automated assembly lines, and material handling equipment. Absolute output enables accurate startup positioning without homing sequences. The axial cable connection and IP65 protection structure support reliable operation in dusty environments and industrial control panels.
The EP50S8-360-1F-N-24 from Autonics provides consistent absolute position feedback with clearly defined electrical and mechanical specifications. As part of the EP50SP Series, it aligns with established Autonics encoder standards used across industrial automation systems. This Autonics Absolute Encoder is suitable for engineers seeking dependable positioning performance and stable integration within industrial control architectures.
