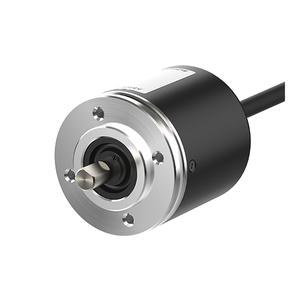

Autonics EP50S8-1024-3F-P-24 Rotary Encoder
The Autonics EP50S8-1024-3F-P-24 Rotary Encoder offers PNP open collector control output, Axial cable type, 35kHz allowable frequency, Ø8mm diameter. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the EP50SP Series
.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | EP50S8-1024-3F-P-24 |
Autonics EP50S8-1024-3F-P-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 70gf.cm(max. 0.0069N.m) |
| Resolution | 1024P/R |
| Control output | PNP open collector |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP65(IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket, Coupling |
| Weight | Approx. 482g(approx. 398g) |
The Autonics EP50S8-1024-3F-P-24 Single-Turn Absolute Encoders is built for high-precision absolute position tracking, offering a 1024 pulses per revolution resolution with Gray code output for error-resistant data interpretation. Its PNP open collector control output ensures fast and reliable signal delivery to PLCs, controllers, and motion control systems. Designed for industrial speed and accuracy, it supports a maximum revolution of 3000 rpm and a 35 kHz response frequency.
Powered by a wide-range 12–24 VDC ±5% supply, this encoder maintains stable performance even under fluctuating voltage conditions. It features an Ø8 mm shaft and axial cable connection for secure, space-efficient installation. A low starting torque of 70 gf.cm minimizes mechanical wear, while the IP65-rated enclosure provides solid protection against dust and low-pressure water jets.
With an operating temperature range of -10°C to +70°C and humidity resistance up to 85% RH, the EP50S8-1024-3F-P-24 ensures long service life in varied industrial environments. It is supplied with a precision coupling and mounting bracket for straightforward installation. For complete details, visit the Autonics brand page or view our Autonics Rotary Encoders category.
The Autonics EP50S8-1024-3F-P-24 Single-Turn Absolute Encoder is used in robotics, conveyor lines, labeling machines, and CNC equipment where absolute position accuracy is essential. In assembly lines, it enables precise start-stop positioning, while in robotic arms it defines exact movement angles for repeatable accuracy. Its Gray code output prevents data errors during signal transitions, making it ideal for high-reliability applications. Maintenance teams value its low torque requirement, reducing wear on drive components, while design engineers appreciate its straightforward wiring and robust IP65 build. In training setups, it serves as a practical teaching tool for absolute encoder integration, direction control, and industrial motion feedback systems.
