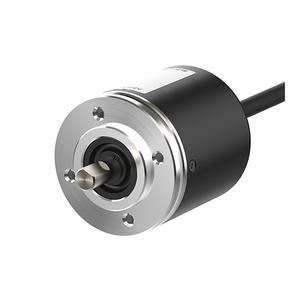

Autonics EP50S8-1024-3F-N-24 Rotary Encoder
The Autonics EP50S8-1024-3F-N-24 Rotary Encoder offers NPN open collector control output, Axial cable type, 35kHz allowable frequency, Γ8mm diameter. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the EP50SP Series
.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | EP50S8-1024-3F-N-24 |
Autonics EP50S8-1024-3F-N-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ8mm |
| Max. response frequency | 35kHz |
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 70gf.cm(max. 0.0069N.m) |
| Resolution | 1024P/R |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Output code | Gray Code |
| Rotating direction | CW |
| Protection structure | IP65(IEC standard) |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket, Coupling |
| Weight | Approx. 482g(approx. 398g) |
The EP50S8-1024-3F-N-24 from Autonics is built to deliver high-resolution feedback with 1024 pulses per revolution using Gray code output, ensuring absolute position tracking with reduced bit errors. Its NPN open collector control output is engineered for seamless integration into PLCs and digital counters. The encoder operates efficiently at up to 3000rpm with a maximum response frequency of 35kHz, enabling stable feedback even in high-speed industrial equipment. With a power input range of 12β24VDC and ripple tolerance of Β±5%, it maintains signal consistency under varied electrical conditions. The shaft diameter is Γ8mm and the axial cable type simplifies routing in compact control panels. Housed in an IP65-rated enclosure, the encoder provides excellent dust protection and moisture resistance, making it a solid choice for harsh plant environments. It is designed to perform in temperatures from -10Β°C to 70Β°C and humidity up to 85% RH, ensuring long-term stability.
In real-world applications, the EP50S8-1024-3F-N-24 is ideal for conveyor tracking, packaging automation, pick-and-place robotics, and CNC positioning systems. It helps reduce cycle errors in motion systems by maintaining exact shaft position at every stage. In automated filling or labeling machines, this encoder ensures that operations are synchronized down to the millisecond. Plant maintenance engineers benefit from its low starting torque of 70gf.cm, reducing mechanical wear and increasing operational lifespan. The Gray code output simplifies decoding in digital systems, making it a reliable teaching tool for engineering students and a dependable component for OEM automation projects.
Built for robust performance and engineered with trusted Autonics quality, the EP50S8-1024-3F-N-24 Absolute Rotary Encoder delivers consistent results in demanding environments. For full specifications, datasheets, and inquiry support, visit: https://www.indmall.in/autonics-ep50s8-1024-3f-n-24/
