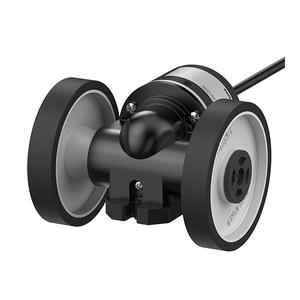

Autonics ENC-1-3-N-24 Rotary Encoder
The Autonics ENC-1-3-N-24 Rotary Encoder offers NPN open collector control output, Axial cable type, 180kHz allowable frequency, 12-24VDC power supply. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the ENC Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | ENC-1-3-N-24 |
Autonics ENC-1-3-N-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Max. response frequency | 180kHz |
| Max. allowable revolution | 5000rpm |
| Output phase | A, B |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Wheel diameter | 250mm |
| Gear ratio | 4:1 |
| Number of pulses | 1 |
| Min. measurement unit | 1m |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 494g |
The Autonics ENC-1-3-N-24 Wheel Type Incremental Rotary Encoders is engineered for long-distance measurement applications, featuring a 250 mm wheel diameter and 4:1 gear ratio to achieve a 1-meter minimum measurement unit. This makes it highly effective for operations where broad displacement needs to be monitored, such as large conveyors and processing lines.
It delivers stable performance with a maximum response frequency of 180 kHz and supports speeds up to 5000 rpm, ensuring accurate pulse generation in both slow and high-speed setups. The NPN open collector output provides dual-phase A, B signals for reliable speed and direction feedback, compatible with a wide range of PLCs and industrial controllers. Powered by a 12β24 VDC Β±5% supply, it offers voltage stability in demanding environments.
Built with an IP50-rated housing for dust protection, this encoder operates reliably in temperatures from -10Β°C to +70Β°C and tolerates humidity levels up to 85% RH. The axial cable connection supports clean and secure wiring, while the 494g build ensures a balance of durability and handling ease. For detailed technical specifications, visit the Autonics brand page or the Autonics Rotary Encoders category.
The Autonics ENC-1-3-N-24 Wheel Type Incremental Rotary Encoder is widely used in automated warehousing, large material handling systems, steel coil measurement, and long conveyor belt monitoring. Its 1-meter resolution makes it suitable for bulk movement tracking where high precision is not required but reliability is critical. In printing and textile applications, it ensures consistent feed length over extended runs. Maintenance engineers appreciate its straightforward wiring, robust NPN output, and stable performance, while system integrators value its compatibility with both modern and legacy PLC systems. In training labs, it provides a real-world example of incremental encoding for distance-based control, enabling students to learn signal processing and automation logic with practical hardware.
