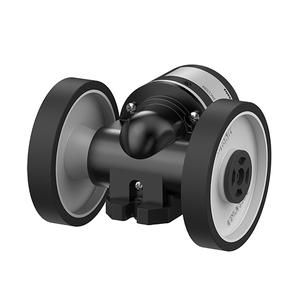

Autonics ENC-1-1-T-24-C Rotary Encoder
The Autonics ENC-1-1-T-24-C Rotary Encoder offers Totem pole control output, Axial cable connector type, 180kHz allowable frequency, 12-24VDC power supply. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the ENC Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | ENC-1-1-T-24-C |
Autonics ENC-1-1-T-24-C Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Max. response frequency | 180kHz |
| Max. allowable revolution | 5000rpm |
| Output phase | A, B |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable connector type |
| Wheel diameter | 250mm |
| Gear ratio | 1:1 |
| Number of pulses | 250 |
| Min. measurement unit | 1mm |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 494g |
Built for accuracy and integration ease, the ENC-1-1-T-24-C from Autonics offers a unique combination of high-speed response and fine measurement. It supports a maximum response frequency of 180kHz and can handle up to 5000 revolutions per minute, making it suitable for fast-moving production lines. With A and B output phases and a reliable Totem pole output type, this encoder ensures clean and synchronized signal delivery for high-resolution motion tracking. Operating on a versatile 12–24VDC power supply with ripple tolerance of ±5%, it integrates smoothly into a wide variety of control systems. The axial cable connector design and IP50 protection rating add durability and simplify installation in environments where dust exposure is common.
One of its key advantages lies in the 1:1 gear ratio combined with a large 250mm wheel diameter, delivering 250 pulses per revolution. This setup enables a minimum measurement unit of just 1mm, making it ideal for conveyor-based product length detection, automated material feeds, or labeling systems. The ENC-1-1-T-24-C remains stable across a broad environmental range—from -10°C to 70°C in operation and up to 85°C in storage—with humidity tolerance from 35% to 90% RH. Its compact size and 494g weight make it a preferred choice for OEM machine builders and retrofit projects alike. For further details or official documentation, refer to the Autonics official product page.
This Wheel Type Incremental Encoder is widely adopted in automated inspection lines, print & apply systems, textile cutting machines, and packaging conveyors. Engineers trust it for its precision and low-latency feedback, especially in applications requiring exact movement measurement over long distances. Whether you’re working in a maintenance team looking to replace an aging encoder or setting up a new process line, the ENC-1-1-T-24-C offers plug-and-play reliability without the complexities of high-end servo systems. It’s the smart choice when budget, accuracy, and uptime all matter.
