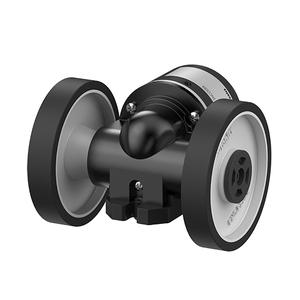

Autonics ENC-1-1-N-24-C Rotary Encoder
The Autonics ENC-1-1-N-24-C Rotary Encoder offers NPN open collector control output, Axial cable connector type, 180kHz allowable frequency, 12-24VDC power supply. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the ENC Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | ENC-1-1-N-24-C |
Autonics ENC-1-1-N-24-C Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Max. response frequency | 180kHz |
| Max. allowable revolution | 5000rpm |
| Output phase | A, B |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Axial cable connector type |
| Wheel diameter | 250mm |
| Gear ratio | 1:1 |
| Number of pulses | 250 |
| Min. measurement unit | 1mm |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Weight | Approx. 494g |
The ENC-1-1-N-24-C offers dependable performance with a maximum response frequency of 180kHz and supports up to 5000rpm rotational speed, making it a reliable choice for high-speed automation setups. It uses a NPN open collector control output, allowing straightforward integration with common PLCs and digital input modules. Powered by a 12–24VDC source (±5% ripple), the encoder ensures consistent signal reliability even under fluctuating industrial voltages. Its Axial cable connector type simplifies wiring and reduces installation time in constrained control panels.
The encoder’s mechanical construction includes a 250mm wheel diameter combined with a 1:1 gear ratio, enabling it to output 250 pulses per meter. With a minimum measurement unit of 1mm, it provides fine resolution for tracking incremental movement along flat surfaces. Built with an IP50 protection rating, it resists dust ingress in typical factory environments. The device operates seamlessly within temperatures of -10°C to 70°C and humidity levels of up to 85% RH, making it suitable for a wide range of climates and installations. Weighing just 494g, the encoder is compact yet rugged, ideal for OEM applications and maintenance upgrades alike.
The Autonics ENC-1-1-N-24-C Wheel Type Incremental Encoder is widely used in labeling machines, packaging lines, textile feed rollers, conveyor belt monitoring, and sheet length detection. Its ability to provide real-time linear measurement with millimeter-level precision makes it especially valuable in industries that require synchronized motor feedback and position validation. Whether you're automating a new process or optimizing legacy systems, this model brings reliability, integration ease, and cost-efficiency to your setup. For detailed documentation, visit the official Autonics product catalog.
