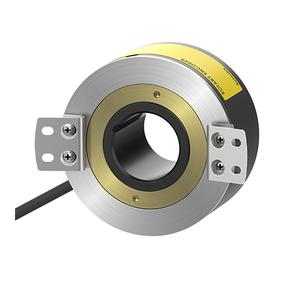

Autonics E80H32-360-3-V-24 Rotary Encoder
The Autonics E80H32-360-3-V-24 Rotary Encoder offers Γ32mm shaft inner diameter, 3600rpm Max. allowable revolution, Voltage, Control output 12-24VDC, Power supply, 360P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E80H Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E80H32-360-3-V-24 |
Autonics E80H32-360-3-V-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ32mm |
| Max. response frequency | 200kHz |
| Max. allowable revolution | 3600rpm |
| Starting torque | Max. 200gf.cm(max. 0.0196N.m) |
| Resolution | 360P/R |
| Output phase | A, B, Z |
| Control output | Voltage |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Spring bracket |
| Weight | Approx. 560g |
Give Us a Call for 80 mm Incremental Rotary Encoders E80H32-360-3-V-24 at the lowest pricing. In-depth Technical Analysis of E80H32-360-3-V-24 feature shaft inner diameter of Γ32mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 200kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 3600rpm and features a starting torque of Max. 200gf.cm(max. 0.0196N.m) designed for smooth performance. The control output is a Voltage, powered by a 12-24VDC for stable functionality. It features an Radial cable type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70β, storage: -25 to 85β. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. Elevate Your Project with a Quote for your requirement of 80 mm Incremental Rotary Encoders. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
