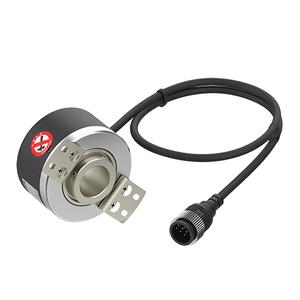

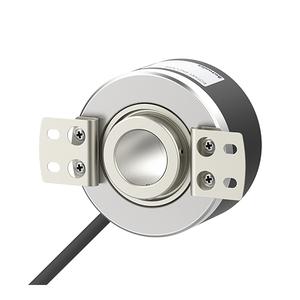

Autonics E60H20-5000-3-V-5-C Rotary Encoder
The Autonics E60H20-5000-3-V-5-C Rotary Encoder offers Γ20mm shaft inner diameter, 6000rpm Max. allowable revolution, Voltage, Control output 5VDC, Power supply, 5000P/R, resolution Radial cable connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E60H Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E60H20-5000-3-V-5-C |
Autonics E60H20-5000-3-V-5-C Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ20mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 150gf.cm(max. 0.0147N.m) |
| Resolution | 5000P/R |
| Output phase | A, B, Z |
| Control output | Voltage |
| Power supply | 5VDC |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket: 2 |
| Weight | Approx. 391g(approx. 330g) |
Please speak to our Technical Engineer for 60mm Incremental Rotary Encoder E60H20-5000-3-V-5-C at attractive prices. Technical Specs Summary of E60H20-5000-3-V-5-C includes shaft inner diameter of Γ20mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 300kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 6000rpm and features a starting torque of Max. 150gf.cm(max. 0.0147N.m) designed for smooth performance. The control output is a Voltage, powered by a 5VDC for stable functionality. It features an Radial cable connector type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70β, storage: -25 to 85β. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. Match Your Needs with a Quote for your requirement of 60mm Incremental Rotary Encoder. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
