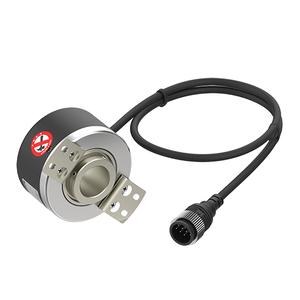

Autonics E60H20-5000-3-N-24-C Rotary Encoder
The Autonics E60H20-5000-3-N-24-C Rotary Encoder offers Γ20mm shaft inner diameter, 6000rpm Max. allowable revolution, NPN open collector, Control output 12-24VDC, Power supply, 5000P/R, resolution Radial cable connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E60H Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E60H20-5000-3-N-24-C |
Autonics E60H20-5000-3-N-24-C Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ20mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 150gf.cm(max. 0.0147N.m) |
| Resolution | 5000P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket: 2 |
| Weight | Approx. 391g(approx. 330g) |
The Autonics E60H20-5000-3-N-24-C is a 5000 pulse incremental encoder engineered for precise and reliable rotational feedback in industrial automation. With a 20mm shaft rotary encoder design and a robust 60mm body rotary encoder housing, it delivers a 5000 ppr rotary encoder resolution, making it suitable for applications requiring high accuracy. Supporting a maximum response frequency of 300kHz and speeds up to 6000rpm, this high resolution incremental encoder ensures stable operation even in fast-moving systems. It features a 3-channel high-resolution encoder output (A, B, Z) using an NPN open collector circuit, fully compatible with PLCs and controllers. Powered by a 24VDC incremental rotary encoder input (12β24VDC Β±5%), it provides consistent performance with minimal ripple. Designed with a radial cable connector, IP50-rated protection, and a low starting torque of 150gfΒ·cm, this N-type output encoder offers long-lasting durability and ease of integration.
Applications of the E60H20-5000-3-N-24-C Rotary Encoder include robotics, CNC machinery, conveyor systems, and packaging lines where precision and reliability are essential. Its 5000 pulse incremental encoder resolution provides detailed feedback for synchronized motion control, while the sturdy 60mm housing makes it suitable for heavy-duty industrial setups. Engineers rely on this Autonics E60H20 5000 3 N 24 C Rotary Encoder for its high-speed compatibility and stable feedback, while maintenance teams appreciate its straightforward wiring and dependable operation across -10Β°C to 70Β°C. These features make it a trusted solution for industries where accuracy, uptime, and efficiency are critical.
The Autonics E60H20-5000-3-N-24-C Incremental Encoder is supplied by wholesalers, dealers, and distributors across industrial markets. Belonging to the Autonics E60H Series, this model stands out as a cost-effective yet high-quality encoder trusted by automation professionals. Its high-resolution output, robust 60mm housing, and compatibility with modern control systems make it a preferred choice for industrial buyers. Learn more at Autonics Encoders and choose the E60H20-5000-3-N-24-C for dependable precision in automation and motion control projects.
