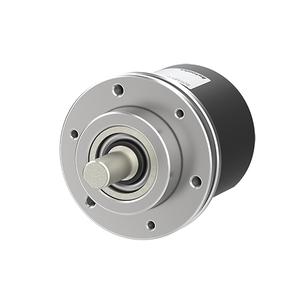

Autonics E58SC10-300-3-N-5-CR Rotary Encoder
The Autonics E58SC10-300-3-N-5-CR Rotary Encoder offers 300P/R resolution, Γ10mm shaft diameter, Axial connector type, NPN open collector output, 300kHz response frequency. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the E58SC Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E58SC10-300-3-N-5-CR |
Autonics E58SC10-300-3-N-5-CR Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ10mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 300P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 5VDC |
| Connection type | Axial connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ10mm coupling, Bracket |
| Weight | Approx. 340g(Approx. 230g) |
IndMALL Automation Dealing offers 58 mm Incremental Encoders E58SC10-300-3-N-5-CR at unbeatable prices. The Main Technical Parameters of E58SC10-300-3-N-5-CR are shaft outer diameter of Γ10mm, ensuring precise compatibility for industrial applications. It supports a high response frequency of 300kHz and a maximum allowable revolution speed of 5000rpm, making it suitable for high-performance operations. With a resolution of 300P/R, it delivers accurate output signals. The encoder uses a NPN open collector control output and operates seamlessly with a power supply 5VDC. It features an Axial connector type for easy and reliable connections. Designed for durability, it operates in ambient temperatures from -10 to 70β, storage: -25 to 85β. The humidity range supported is 35 to 85% RH, storage: 35 to 90% RH during storage. Take the First Step with a Quote for your requirement of 58 mm Incremental Encoders. Choose us for unparalleled pricing and support over other Dealers & Distributors.
