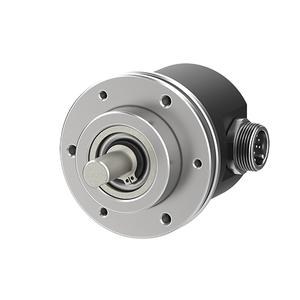

Autonics E58SC10-2500-6-L-5-CS Rotary Encoder
The Autonics E58SC10-2500-6-L-5-CS Rotary Encoder offers Γ10mm shaft outer diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 5VDC, Power supply, 2500P/R, resolution Radial connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E58SC Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E58SC10-2500-6-L-5-CS |
Autonics E58SC10-2500-6-L-5-CS Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ10mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 2500P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Radial connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ10mm coupling, Bracket |
| Weight | Approx. 340g(Approx. 230g) |
Obtain a Quote for 58 mm Incremental Encoders E58SC10-2500-6-L-5-CS at economical prices. Specifications Overview for E58SC10-2500-6-L-5-CS reveals shaft outer diameter of Γ10mm for precise applications. The encoder supports a maximum response frequency of 300kHz and an allowable revolution speed of 5000rpm, ensuring efficient performance in demanding environments. With a resolution of 2500P/R, it provides accurate signal output. The control output is a Line Driver, designed to operate seamlessly with a power supply 5VDC. The encoder comes with an Radial connector type connection for easy integration into various systems. Its operational temperature range is -10 to 70β, storage: -25 to 85β. Humidity levels are supported at 35 to 85% RH, storage: 35 to 90% RH during storage. Take the First Step with a Quote for your requirement of 58 mm Incremental Encoders. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
