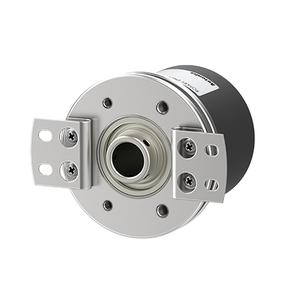

Autonics E58HB12-50-6-L-5-CR Rotary Encoder
The Autonics E58HB12-50-6-L-5-CR Rotary Encoder offers Γ12mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 5VDC, Power supply, 50P/R, resolution Axial connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E58HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E58HB12-50-6-L-5-CR |
Autonics E58HB12-50-6-L-5-CR Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ12mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolution | 50P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Axial connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 310g(approx. 200g) |
Talk to Our Engineer for 58mm Incremental Rotary Encoder E58HB12-50-6-L-5-CR with exclusive offers. Core System Specifications of E58HB12-50-6-L-5-CR are shaft inner diameter of Γ12mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 300kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 5000rpm and features a starting torque of Max. 90gf.cm(max. 0.00882N.m) designed for smooth performance. The control output is a Line Driver, powered by a 5VDC for stable functionality. It features an Axial connector type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70β, storage: -25 to 85β. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. Don't Miss Out on a Quote for your requirement of 58mm Incremental Rotary Encoder. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
