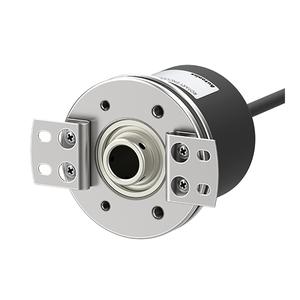

Autonics E58HB12-1200-3-T-24 Rotary Encoder
The Autonics E58HB12-1200-3-T-24 Rotary Encoder offers Γ12mm shaft inner diameter, 5000rpm Max. allowable revolution, Totem pole, Control output 12-24VDC, Power supply, 1200P/R, resolution Axial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E58HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E58HB12-1200-3-T-24 |
Autonics E58HB12-1200-3-T-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ12mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolution | 1200P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 380g(approx. 270g) |
Talk to Our Engineer for 58mm Incremental Rotary Encoder E58HB12-1200-3-T-24 with exclusive offers. Core System Specifications of E58HB12-1200-3-T-24 are shaft inner diameter of Γ12mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 300kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 5000rpm and features a starting torque of Max. 90gf.cm(max. 0.00882N.m) designed for smooth performance. The control output is a Totem pole, powered by a 12-24VDC for stable functionality. It features an Axial cable type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70β, storage: -25 to 85β. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. Don't Miss Out on a Quote for your requirement of 58mm Incremental Rotary Encoder. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
