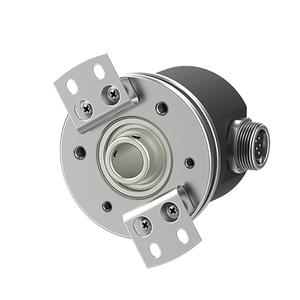

Autonics E58HB12-10-3-V-24-CS Rotary Encoder
The Autonics E58HB12-10-3-V-24-CS Rotary Encoder offers Ø12mm shaft inner diameter, 5000rpm Max. allowable revolution, Voltage, Control output 12-24VDC, Power supply, 10P/R, resolution Radial connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E58HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E58HB12-10-3-V-24-CS |
Autonics E58HB12-10-3-V-24-CS Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø12mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolution | 10P/R |
| Output phase | A, B, Z |
| Control output | Voltage |
| Power supply | 12-24VDC |
| Connection type | Radial connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 310g(approx. 200g) |
Ask for the Pricing of 58 mm Incremental Encoders E58HB12-10-3-V-24-CS at unbeatable prices. Detailed Specifications of E58HB12-10-3-V-24-CS features shaft inner diameter of Ø12mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 300kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 5000rpm and features a starting torque of Max. 90gf.cm(max. 0.00882N.m) designed for smooth performance. The control output is a Voltage, powered by a 12-24VDC for stable functionality. It features an Radial connector type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70℃, storage: -25 to 85℃. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. Now's the Time to Secure a Quote for your requirement of 58 mm Incremental Encoders. We're committed to offering more favorable pricing and more responsive support than other Traders.
