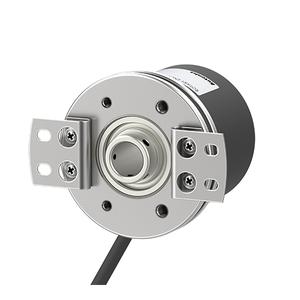

Autonics E58H12-2500-3-T-5 Rotary Encoder
The Autonics E58H12-2500-3-T-5 Rotary Encoder offers Ø12mm shaft inner diameter, 5000rpm Max. allowable revolution, Totem pole, Control output 5VDC, Power supply, 2500P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E58H Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E58H12-2500-3-T-5 |
Autonics E58H12-2500-3-T-5 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø12mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 90gf.cm(max. 0.00882N.m) |
| Resolution | 2500P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 5VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 380g(approx. 270g) |
Please speak to our Technical Engineer for 58 mm Incremental Rotary Encoders E58H12-2500-3-T-5 at attractive prices. Technical Specs Summary of E58H12-2500-3-T-5 includes shaft inner diameter of Ø12mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 300kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 5000rpm and features a starting torque of Max. 90gf.cm(max. 0.00882N.m) designed for smooth performance. The control output is a Totem pole, powered by a 5VDC for stable functionality. It features an Radial cable type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70℃, storage: -25 to 85℃. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. Match Your Needs with a Quote for your requirement of 58 mm Incremental Rotary Encoders. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
