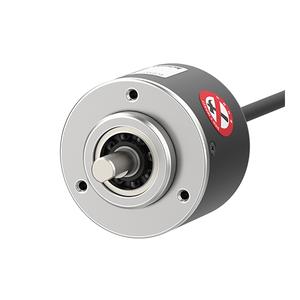

Autonics E50S8-8000-6-L-5 - 50 mm Incremental Rotary Encoders
The Autonics E50S8-8000-6-L-5 is a 50 mm Incremental Rotary Encoder engineered for precision motion control, providing reliable feedback for speed and position in automation systems.
| Spec | Value |
|---|---|
| Brand | Autonics |
| Product Type | Incremental Rotary Encoders |
| Product | E50S8-8000-6-L-5 |
🛠️ Get Quotes Instantly from Autonics Vendors
Autonics 50 mm Incremental Rotary Encoders E50S8-8000-6-L-5 Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 8000P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC @(=) ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
The Autonics E50S8-8000-6-L-5 50 mm Incremental Rotary Encoder offers a high resolution of 8000 pulses per revolution with an 8mm shaft diameter for precise motion feedback. It supports a maximum response frequency of 300kHz and operates at speeds up to 5000rpm, ensuring real-time signal accuracy even in high-speed machinery. Powered by 5VDC ±5% with minimal ripple (max. 5%), it delivers stable performance via a robust Line Driver output, reducing signal noise over long cable runs.
Built for durability, the Autonics E50S8-8000-6-L-5 features a rugged construction with an IP50 protection rating to safeguard against dust intrusion. Its low starting torque of 0.00686 N·m allows smooth rotation, while the axial cable type connection ensures secure integration into control panels. It operates reliably in environments from -10°C to +70°C with humidity tolerance up to 85% RH. Supplied accessories include a Ø8mm coupling and mounting bracket for quick installation and alignment. Learn more about Autonics Rotary Encoders or explore all automation solutions from Autonics.
The E50S8-8000-6-L-5 Rotary Encoder is widely used in CNC machines for spindle positioning, conveyor systems for speed monitoring, and robotic arms for precise motion control. In packaging automation, it provides accurate position feedback for cutting, sealing, and labeling operations. It also supports servo motor feedback, ensuring synchronized and efficient operations across production lines. For engineers seeking high-resolution, stable, and long-lasting encoders, the Autonics E50S8-8000-6-L-5 remains a proven choice.
