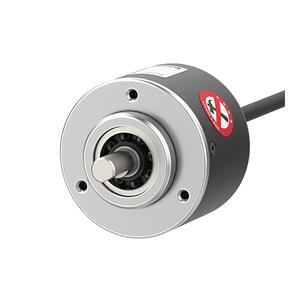

Autonics E50S8-8000-6-L-5 Rotary Encoder
The Autonics E50S8-8000-6-L-5 Rotary Encoder features a Ø8mm shaft outer diameter, 8000P/R resolution, and line driver output ensuring ultra-precise rotational feedback for industrial automation systems. Manufactured by Autonics, this Autonics Rotary Encoder supports a maximum allowable revolution of 5000rpm and operates efficiently on a 5VDC ±5% power supply. The Autonics E50S Series model features an axial cable connection and durable IP50 (IEC standard) protection structure, providing reliable performance in demanding industrial applications.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E50S8-8000-6-L-5 |
Autonics E50S8-8000-6-L-5 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 8000P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
The Autonics E50S8-8000-6-L-5 is an 8000 pulse incremental encoder designed for demanding automation systems where precision is critical. With a 50mm body rotary encoder structure and an 8mm shaft encoder, it delivers 8000 ppr rotary encoder resolution, enabling fine motion control and reliable feedback. Operating at speeds up to 5000 rpm with a 300kHz response frequency, this ultra-high resolution encoder ensures fast and accurate performance. A robust 6-channel line driver encoder output provides stable signals, even across long cable runs, while its 5VDC ±5% supply secures consistent operation.
Engineered with an IP50 protection structure, the E50S8-8000-6-L-5 Encoder resists dust ingress, making it suitable for clean industrial settings. Its low starting torque of 70 gf·cm minimizes load on connected equipment, ensuring smooth rotation and extended service life. The axial cable type connection simplifies wiring in compact control panels, and included accessories such as the Ø8mm coupling and bracket allow for easy installation and alignment. Reliable performance is guaranteed across -10°C to +70°C operating range with humidity tolerance up to 85% RH.
Applications of the Autonics E50S8-8000-6-L-5 Rotary Encoder include CNC machining, robotic arms, packaging lines, and conveyor systems where high-resolution feedback is vital. OEMs trust its precise signals for motor synchronization, while maintenance engineers rely on its robust build for consistent operation. For wholesalers, dealers, and distributors, this Autonics E50S Series encoder remains a preferred choice due to its proven accuracy and durability in industrial environments.
With its 8000 pulse incremental encoder resolution, 50 mm body rotary encoder design, 8mm shaft encoder build, and 5V incremental encoder supply, the Autonics E50S8-8000-6-L-5 offers unmatched motion feedback. Explore more at Autonics Encoders and integrate this high-performance model into your automation projects.
