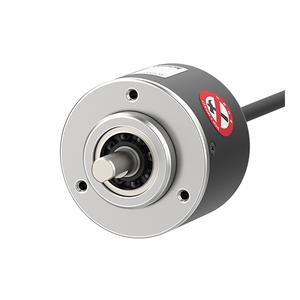

Autonics E50S8-512-6-L-24 Rotary Encoder
The Autonics E50S8-512-6-L-24 Rotary Encoder offers Γ8mm shaft outer diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 512P/R, resolution Axial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E50S Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E50S8-512-6-L-24 |
Autonics E50S8-512-6-L-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 512P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
Ask for the Pricing of 50 mm Incremental Rotary Encoders E50S8-512-6-L-24 at unbeatable prices. Detailed Specifications of E50S8-512-6-L-24 features shaft outer diameter of Γ8mm for precise applications. The encoder supports a maximum response frequency of 300kHz and an allowable revolution speed of 5000rpm, ensuring efficient performance in demanding environments. With a resolution of 512P/R, it provides accurate signal output. The control output is a Line Driver, designed to operate seamlessly with a power supply 12-24VDC. The encoder comes with an Axial cable type connection for easy integration into various systems. Its operational temperature range is -10 to 70β, storage: -25 to 85β. Humidity levels are supported at 35 to 85% RH, storage: 35 to 90% RH during storage. Now's the Time to Secure a Quote for your requirement of 50 mm Incremental Rotary Encoders. We're committed to offering more favorable pricing and more responsive support than other Traders.
