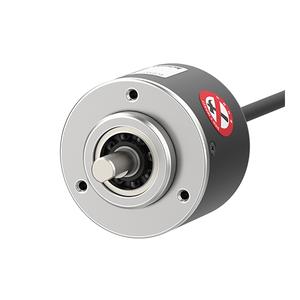

Autonics E50S8-5000-3-T-24 50 mm Incremental Rotary Encoders
The E50S8-5000-3-T-24 is an Autonics 50 mm Incremental Rotary Encoder with 5000P/R resolution and Ø8mm shaft for automation applications. Manufactured by Autonics, this encoder is listed under Autonics Rotary Encoders and provides A, B, Z output phases with totem pole control output. It belongs to the E50S Series and supports 300kHz response frequency, 5000rpm allowable speed, IP50 protection, axial cable connection, and approximate 363g weight.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E50S8-5000-3-T-24 |
Autonics E50S8-5000-3-T-24 50 mm Incremental Rotary Encoders – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 5000P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
The Autonics E50S8-5000-3-T-24 50 mm Incremental Rotary Encoders model is used for high-resolution speed and position feedback in industrial automation systems. This rotary encoder delivers 5000P/R resolution, Ø8mm shaft diameter, 12–24VDC power supply, and totem pole output for stable signal switching. It belongs to the E50S Series and is applied where precise rotational monitoring is required.
In industrial automation environments, the E50S8-5000-3-T-24 is applied in conveyors, packaging machinery, automated assembly lines, and motion control systems. The encoder enables reliable pulse output for accurate speed detection and position tracking. Its defined response frequency and allowable rotational speed support consistent performance during continuous operation.
The E50S8-5000-3-T-24 Autonics 50 mm Incremental Rotary Encoders solution aligns with standard industrial electrical and mechanical requirements. With IP50 protection, controlled starting torque, and axial cable connectivity, it supports dependable equipment integration. Supported by Autonics manufacturing consistency and the E50S Series design structure, this rotary encoder remains suitable for long-term industrial automation use in India.
