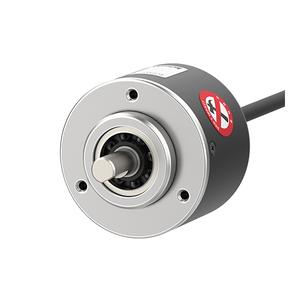

Autonics E50S8-2500-3-T-24 50 mm Incremental Rotary Encoders
E50S8-2500-3-T-24 is an Autonics 50 mm Incremental Rotary Encoders model offering 2500P/R resolution, Ø8mm shaft, and 300kHz response frequency. Manufactured by Autonics, this encoder supports 5000rpm, A, B, Z output phases, totem pole control output, 12–24VDC power supply, axial cable connection, IP50 protection, maximum 70gf.cm starting torque, and approximately 363g weight, and is listed under the Autonics Rotary Encoder category as part of the E50S Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E50S8-2500-3-T-24 |
Autonics E50S8-2500-3-T-24 50 mm Incremental Rotary Encoders – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 2500P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
The Autonics E50S8-2500-3-T-24 50 mm Incremental Rotary Encoders unit is designed for rotational feedback in industrial automation systems. This model provides 2500P/R resolution, Ø8mm shaft diameter, 300kHz maximum response frequency, and operates on a 12–24VDC power supply. The E50S8-2500-3-T-24 belongs to the E50S Series and supports controlled signal generation in automation equipment.
In industrial applications, the E50S8-2500-3-T-24 Autonics 50 mm Incremental Rotary Encoders model is used in conveyors, packaging machinery, automated assembly lines, and motion control systems. The A, B, Z phase output enables accurate speed and direction detection, while the totem pole output ensures stable signal transmission. Its allowable speed of 5000rpm supports continuous operation in standard industrial environments.
The E50S8-2500-3-T-24 maintains consistent mechanical and electrical characteristics for long-term industrial use. With defined starting torque, IP50 protection structure, and axial cable connection, this Autonics encoder integrates reliably into automation systems. As part of the E50S Series, it aligns with industrial automation requirements in India where repeatable rotational sensing and dependable output behavior are required.
