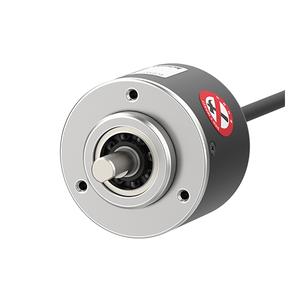

Autonics E50S8-1024-3-T-24 Rotary Encoder
The Autonics E50S8-1024-3-T-24 Rotary Encoder features a Γ8mm shaft diameter, 1024P/R resolution, and Totem pole output for precise and stable rotary motion applications. Manufactured by Autonics, this model supports a maximum revolution of 5000rpm with a 12β24VDC power supply (Β±5% ripple P-P: max. 5%). Available under Autonics Rotary Encoders and part of the E50S Series, it includes an axial cable connection type and IP50 protection structure compliant with IEC standards.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E50S8-1024-3-T-24 |
Autonics E50S8-1024-3-T-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 1024P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
The Autonics E50S8-1024-3-T-24 Rotary Encoder is engineered for precision with a resolution of 1024 pulses per revolution, making it a reliable mid-resolution rotary encoder 1024 pulses Autonics. Built with an Γ8 mm shaft and compact 50 mm body, this E50S8 1024 3 T 24 Incremental Encoder supports 5000 rpm and a 300kHz maximum response frequency, ensuring stable and noise-resistant feedback even in high-speed applications. Powered by 12β24VDC, it uses Totem pole output across A, B, and Z phases for seamless connection with PLCs and controllers. Its IP50 housing provides dust protection, while the included coupling and bracket simplify installation in industrial environments.
Applications of the Rotary Encoders E50S8-1024-3-T-24 extend across CNC machinery, robotics, packaging, conveyors, and servo systems where precise speed and position feedback are critical. As a E50S8 1024 line rotary encoder for automation, it enables accurate spindle monitoring, synchronized motion, and reliable indexing. Maintenance engineers appreciate its low starting torque of 70 gf.cm, reducing stress on connected equipment, while OEMs value its compact size and wiring flexibility. In training labs, the Autonics E50S8-1024-3-T-24 incremental encoder serves as a practical tool for teaching real-world motion control and encoder calibration.
As part of the trusted Autonics E50S Series Encoders, the Autonics E50S8-1024-3-T-24 Rotary Encoder is known for its durability, consistent performance, and ease of integration into automation projects. This Autonics E50S8 shaft type encoder 1024 PPR combines reliable signal output with compact construction, making it ideal for OEMs, plant engineers, and system integrators. Its accuracy, long service life, and compatibility with servo applications position it as a dependable motion control rotary encoder Autonics E50S8 for diverse industrial use. Learn more on the official Autonics Encoders page or review the encoder model E50S8-1024-3-T-24 technical specs for complete details.
