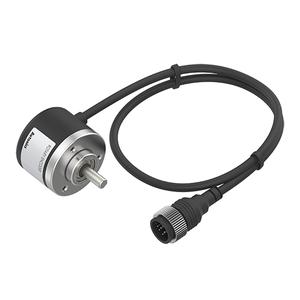

Autonics E40S8-60-3-N-24-C Rotary Encoder
The Autonics E40S8-60-3-N-24-C Rotary Encoder offers Γ8mm shaft outer diameter, 5000rpm Max. allowable revolution, NPN open collector, Control output 12-24VDC, Power supply, 60P/R, resolution Radial cable connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40S Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40S8-60-3-N-24-C |
Autonics E40S8-60-3-N-24-C Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 60P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ6mm coupling standard, Γ8mm coupling(sold separately) |
| Weight | Approx. 120g |
Call us for 40 mm Incremental Rotary Encoders E40S8-60-3-N-24-C at the best rates. Technical Attributes of E40S8-60-3-N-24-C are shaft outer diameter of Γ8mm for precise applications. The encoder supports a maximum response frequency of 300kHz and an allowable revolution speed of 5000rpm, ensuring efficient performance in demanding environments. With a resolution of 60P/R, it provides accurate signal output. The control output is a NPN open collector, designed to operate seamlessly with a power supply 12-24VDC. The encoder comes with an Radial cable connector type connection for easy integration into various systems. Its operational temperature range is -10 to 70β, storage: -25 to 85β. Humidity levels are supported at 35 to 85% RH, storage: 35 to 90% RH during storage. Unlock Exclusive Pricing with a Quote for your requirement of 40 mm Incremental Rotary Encoders. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
