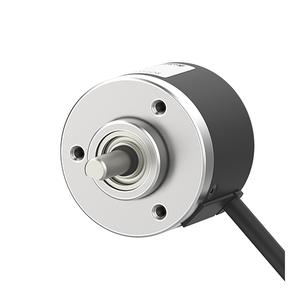

Autonics E40S6-5000-6-L-5 40 mm Incremental Rotary Encoder
The E40S6-5000-6-L-5 is a 40 mm incremental rotary encoder with 5000P/R resolution, Γ6mm shaft, 5VDC supply and 5000rpm speed rating. This Autonics 40 mm Incremental Rotary Encoder provides A, B, Z output phases, 300kHz max response frequency, Line Driver output, and IP50 protection using a radial cable connection. Manufactured by Autonics, part of Autonics Rotary Encoders, this model belongs to the E40S Series used in Indian industrial automation systems.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40S6-5000-6-L-5 |
Autonics E40S6-5000-6-L-5 40 mm Incremental Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ6mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 5000P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ6mm coupling standard, Γ8mm coupling(sold separately) |
| Weight | Approx. 120g |
The Autonics E40S6-5000-6-L-5 40 mm Incremental Rotary Encoder is used for high-resolution rotational feedback in industrial automation systems. This encoder delivers 5000P/R resolution, supports 5000rpm maximum speed, operates on a 5VDC power supply, and provides Line Driver output. It belongs to the E40S Series and is deployed across Indian automation installations.
In industrial applications, the E40S6-5000-6-L-5 is integrated into conveyors, packaging machinery, automated assembly lines, and precision motion control equipment. The encoder enables stable pulse transmission to PLCs and motion controllers, supporting accurate speed and position feedback. Its defined response frequency and electrical output ensure consistent signal quality during continuous operation.
The Autonics E40S6-5000-6-L-5 rotary encoder meets standard incremental encoder requirements for industrial automation environments. As part of the Autonics E40S Series, it maintains predictable electrical characteristics and mechanical compatibility for system integration. This model is selected by engineers and system integrators requiring reliable, high-resolution rotational feedback in Indian industrial installations.
