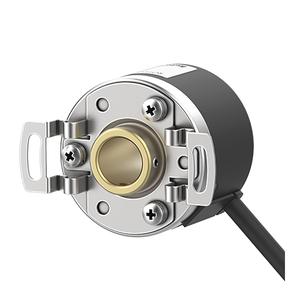

Autonics E40HB8-1800-6-L-24 Rotary Encoder
The Autonics E40HB8-1800-6-L-24 Rotary Encoder offers ร8mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 1800P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB8-1800-6-L-24 |
Autonics E40HB8-1800-6-L-24 Rotary Encoder โ Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | ร8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 1800P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70โ, storage: -25 to 85โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics ensures unmatched precision with the E40HB8-1800-6-L-24 Wheel Type Incremental Rotary Encoder, designed for demanding automation environments. This compact encoder, with a 40 mm body and ร8mm shaft inner diameter, supports stable and smooth rotational feedback. Operating at up to 5000rpm with a maximum response frequency of 300kHz, itโs ideal for high-speed applications where signal accuracy and timing are critical. The encoder features a resolution of 1800 pulses per revolution (P/R), offering high granularity in position control tasks.
Its Line Driver control output supports differential transmission for noise immunity, while the 12โ24VDC ยฑ5% power input range allows compatibility with diverse control systems. The radial cable type connection simplifies integration in space-constrained setups. Designed to handle industrial conditions, this model operates between -10ยฐC to 70ยฐC with up to 85% RH humidity, and is protected by an IP50-rated housing. Weighing only 120g and supplied with a bracket, it fits seamlessly into most automation assemblies. For complete technical details, refer to the official Autonics documentation.
The E40HB8-1800-6-L-24 encoder is well-suited for robotic arms, textile machinery, printing presses, elevator control systems, and packaging automation. Junior maintenance engineers will appreciate its plug-and-play wiring and clear phase outputs for PLC integration. Senior engineers trust its 1800P/R resolution and response speed for maintaining control loop accuracy in motion-centric applications. Even in education settings, this model serves as a benchmark for understanding rotary feedback in closed-loop systems. Whether you're retrofitting an old setup or building new automated systems, this Autonics rotary encoder ensures durability, accuracy, and integration efficiencyโall with the assurance of a globally trusted brand.
